629W3WK3640-3NB

Active

EDAC Inc.

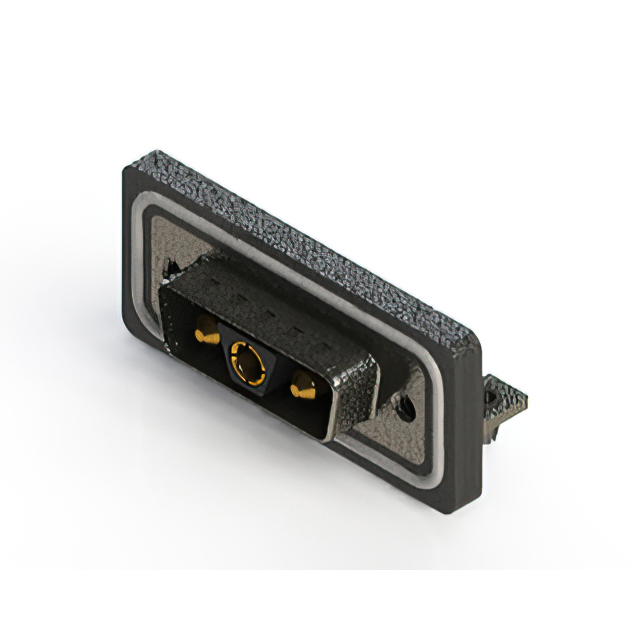

CONN D-SUB PLUG 3POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W3WK3640-3NB

Active

EDAC Inc.

CONN D-SUB PLUG 3POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W3WK3640-3NB

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Brackets, Board Lock, Grounding Indents, Shielded, Filter
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

629W3W Series

...

Part	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Voltage Rating	Connector Style	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Features	Ingress Protection	Connector Type	Mounting Type	Flange Feature	Color	Current Rating (Amps)	Dielectric Material	Shell Size, Connector Layout
EDAC Inc. 629W3W3-640-4N4	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	40 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3WK3640-3NB	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3
EDAC Inc. 629W3W3-140-4NC	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Through Hole Right Angle	Housing/Shell (M3)	Black	40 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3WK3640-4N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	40 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3
EDAC Inc. 629W3WK3140-2N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	20 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3
EDAC Inc. 629W3W3-140-3NB	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3W3-140-1N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	10 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3W3-340-3N4	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.38 µm	15 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3W3-340-1N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.38 µm	15 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	10 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3WK3640-3NA	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 19.90

Description

General part information

629W3W Series

3 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
