629W3W3-140-3NB
ActiveEDAC Inc.

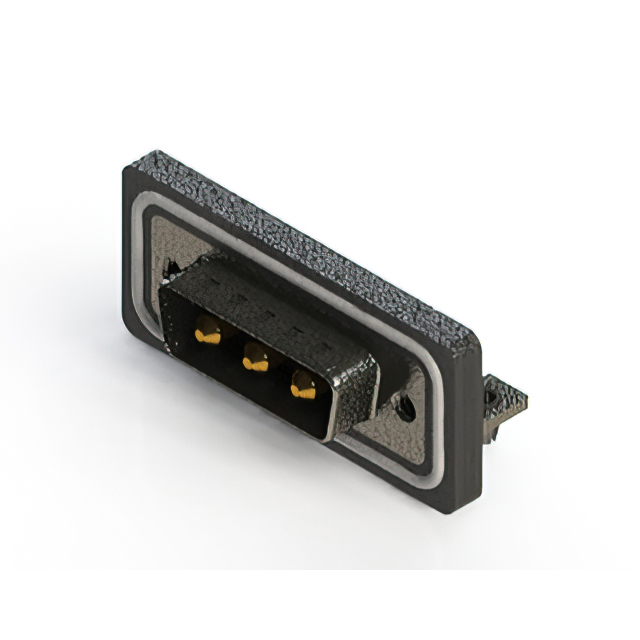

CONN D-SUB PLUG 3POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W3W3-140-3NB
ActiveEDAC Inc.
CONN D-SUB PLUG 3POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W3W3-140-3NB |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 30 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Brackets, Board Lock, Grounding Indents, Shielded, Filter |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | 2 (DA, A) |
| Shell Size, Connector Layout [custom] | 3W3 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W3W Series
...
| Part | Shell Material, Finish | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination | Contact Finish | Voltage Rating | Connector Style | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows | Features | Ingress Protection | Connector Type | Mounting Type | Flange Feature | Color | Current Rating (Amps) | Dielectric Material | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.76 Ám | 30 Áin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 2 (DA A) | 3W3 | 1 | Grounding Indents Mounting Brackets Shielded | IP67 - Dust Tight Waterproof | Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Black | 40 A | Polybutylene Terephthalate (PBT) Glass Filled | |
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.76 Ám | 30 Áin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 1 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | IP67 - Dust Tight Waterproof | Female Sockets Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Black | 30 A | Polybutylene Terephthalate (PBT) Glass Filled | 2 (DA A) - 3WK3 | ||
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.127 µm | 5 µin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 2 (DA A) | 3W3 | 1 | Grounding Indents Mounting Brackets Shielded | IP67 - Dust Tight Waterproof | Male Pins Plug | Through Hole Right Angle | Housing/Shell (M3) | Black | 40 A | Polybutylene Terephthalate (PBT) Glass Filled | |
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.76 Ám | 30 Áin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 1 | Grounding Indents Shielded | IP67 - Dust Tight Waterproof | Female Sockets Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Black | 40 A | Polybutylene Terephthalate (PBT) Glass Filled | 2 (DA A) - 3WK3 | ||
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.127 µm | 5 µin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 1 | Grounding Indents Shielded | IP67 - Dust Tight Waterproof | Female Sockets Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Black | 20 A | Polybutylene Terephthalate (PBT) Glass Filled | 2 (DA A) - 3WK3 | ||
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.127 µm | 5 µin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 2 (DA A) | 3W3 | 1 | Board Lock Filter Grounding Indents Mounting Brackets Shielded | IP67 - Dust Tight Waterproof | Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Black | 30 A | Polybutylene Terephthalate (PBT) Glass Filled | |
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.127 µm | 5 µin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 2 (DA A) | 3W3 | 1 | Grounding Indents Shielded | IP67 - Dust Tight Waterproof | Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Black | 10 A | Polybutylene Terephthalate (PBT) Glass Filled | |
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.38 µm | 15 µin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 2 (DA A) | 3W3 | 1 | Grounding Indents Mounting Brackets Shielded | IP67 - Dust Tight Waterproof | Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Black | 30 A | Polybutylene Terephthalate (PBT) Glass Filled | |
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.38 µm | 15 µin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 2 (DA A) | 3W3 | 1 | Grounding Indents Shielded | IP67 - Dust Tight Waterproof | Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (4-40) | Black | 10 A | Polybutylene Terephthalate (PBT) Glass Filled | |
EDAC Inc. | Nickel Plated Steel | Copper Alloy | -55 °C | 125 °C | Power | 3 | 0.76 Ám | 30 Áin | Solder | Gold | 125 VDC | Combo D-Sub | UL94 V-0 | 1 | Grounding Indents Shielded | IP67 - Dust Tight Waterproof | Female Sockets Male Pins Plug | Panel Mount Right Angle Through Hole | Housing/Shell (M3) | Black | 30 A | Polybutylene Terephthalate (PBT) Glass Filled | 2 (DA A) - 3WK3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 15.07 | |
Description
General part information
629W3W Series
3 (Power) Position D-Sub, Combo Plug, Male Pins Connector
