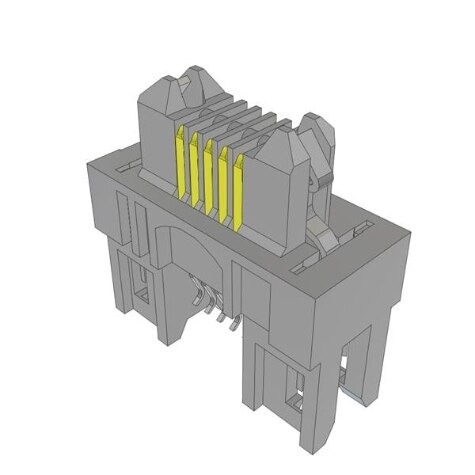

ERM8-005-09.0-L-DV-L-K-TR

ERM8-005-09.0-L-DV-L-K-TR

Active
Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM EDGE RATE(R) RUGGED HIGH SPEED TERMINAL

Find alt
ERM8-005-09.0-L-DV-L-K-TR

ERM8-005-09.0-L-DV-L-K-TR

Active
Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM EDGE RATE(R) RUGGED HIGH SPEED TERMINAL

Find alt

Description

General part information

ERM8 Series

BOARD TO BOARD & MEZZANINE CONNECTORS 0.80 MM EDGE RATE(R) RUGGED HIGH SPEED TERMINAL

Technical Specifications

Parameters and characteristics for this part

SpecificationERM8-005-09.0-L-DV-L-K-TR
Connector TypeHeader, Center Strip Contacts
Contact FinishGold
Contact Finish Thickness10 Ąin
FeaturesBoard Guide, Pick and Place, Latches
Height Above Board0.508 in
Mated Stacking Height Options19mm, 14mm, 16mm
Mounting TypeSurface Mount
Number of Positions10
Number of Rows2
Pitch0.031 in
