M2012S2A2W40

Obsolete

NKK Switches

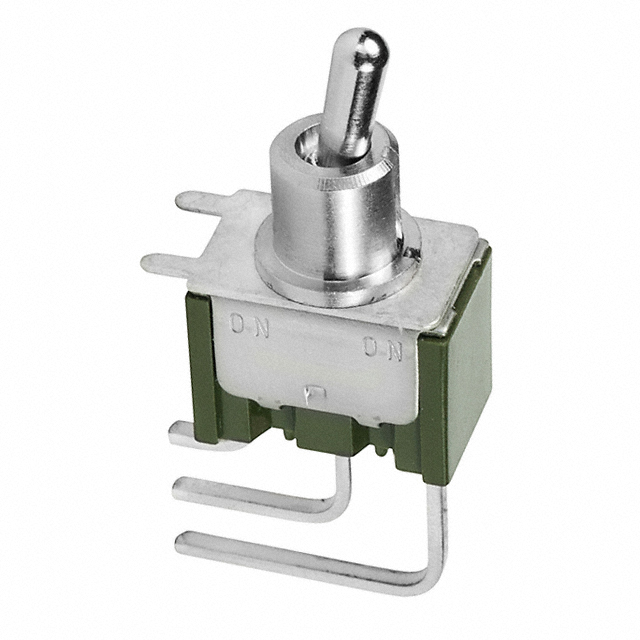

ANGLE PC MOUNT MINIATURE TOGGLE SWITCH; POLES: SPDT; CIRCUITS: ON-ON; CURRENT RATING: 6A (AC), 4A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 6.86MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: THROUGH HOLE, RIGHT ANGLE, VERTICAL; TERMINATION STYLE: PC PIN; BUSHING THREAD: UNTHREADED; FEATURES: EPOXY SEALED TERMINALS; RATING: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2012S2A2W40

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012S2A2W40

Actuator Length [custom]	6.86 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2012S2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Circuit	Actuator Material	Illumination	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Actuator Type	Termination Style	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Length [custom]	Mounting Type
NKK Switches M2012S2S1W03	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin	5.08 mm	6.5 mm	1/4-40
NKK Switches M2012S2A2W25/CUL	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Through Hole
NKK Switches M2012S2A2W45	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Right Angle Through Hole Vertical
NKK Switches M2012S2A1W03	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin		6.5 mm	1/4-40	6.86 mm
NKK Switches M2012S2S2G40	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	0.4 VA	50000 Cycles	28 V	On-On	28 V	Standard Round	PC Pin	5.08 mm		Unthreaded		Right Angle Through Hole Vertical
NKK Switches M2012S2A2W30	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Through Hole Right Angle
NKK Switches M2012S2A2G45	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	0.4 VA	50000 Cycles	28 V	On-On	28 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Right Angle Through Hole Vertical
NKK Switches M2012S2A1G32	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	0.4 VA	50000 Cycles	28 V	On-On	28 V	Standard Round	PC Pin		6.5 mm	1/4-40	6.86 mm	Panel Mount Right Angle
NKK Switches M2012S2A2W40	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Right Angle Through Hole Vertical
NKK Switches M2012S2A2W30/UC-CC	-30 ░C	85 °C	Red Cap	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round with Cap	PC Pin			Unthreaded	6.86 mm	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.16
		10	$ 4.45
		25	$ 4.20
		40	$ 4.08
		80	$ 3.90

Description

General part information

M2012S2 Series

Toggle Switch SPDT Through Hole, Right Angle, Vertical

Documents

Technical documentation and resources
