M2012S2A2W30

Obsolete

NKK Switches

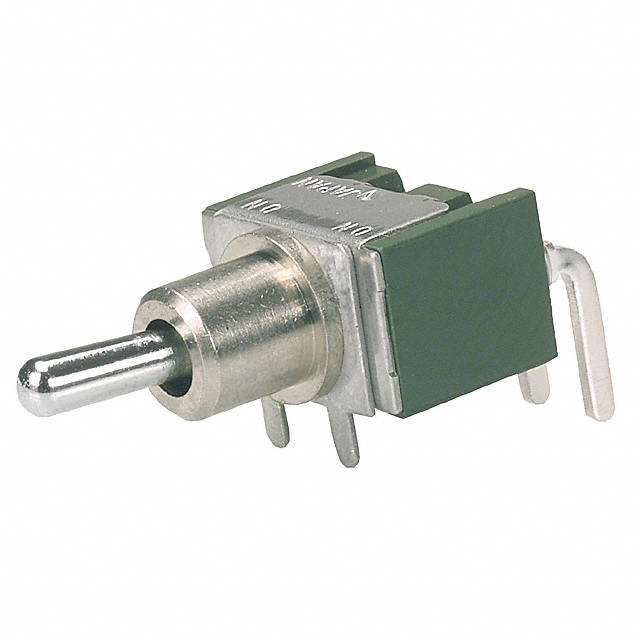

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2012S2A2W30

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2012S2A2W30

Actuator Length [custom]	6.86 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2012S2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Circuit	Actuator Material	Illumination	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Actuator Type	Termination Style	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Bushing Thread	Actuator Length [custom]	Mounting Type
NKK Switches M2012S2S1W03	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin	5.08 mm	6.5 mm	1/4-40
NKK Switches M2012S2A2W25/CUL	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Through Hole
NKK Switches M2012S2A2W45	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Right Angle Through Hole Vertical
NKK Switches M2012S2A1W03	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin		6.5 mm	1/4-40	6.86 mm
NKK Switches M2012S2S2G40	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	0.4 VA	50000 Cycles	28 V	On-On	28 V	Standard Round	PC Pin	5.08 mm		Unthreaded		Right Angle Through Hole Vertical
NKK Switches M2012S2A2W30	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Through Hole Right Angle
NKK Switches M2012S2A2G45	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	0.4 VA	50000 Cycles	28 V	On-On	28 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Right Angle Through Hole Vertical
NKK Switches M2012S2A1G32	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	0.4 VA	50000 Cycles	28 V	On-On	28 V	Standard Round	PC Pin		6.5 mm	1/4-40	6.86 mm	Panel Mount Right Angle
NKK Switches M2012S2A2W40	-30 ░C	85 °C	Epoxy Sealed Terminals	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round	PC Pin			Unthreaded	6.86 mm	Right Angle Through Hole Vertical
NKK Switches M2012S2A2W30/UC-CC	-30 ░C	85 °C	Red Cap	SPDT	Brass Chrome Plated	Non-Illuminated	4 A 6 A	25000 Steps	125 V	On-On	30 V	Standard Round with Cap	PC Pin			Unthreaded	6.86 mm	Through Hole Right Angle
