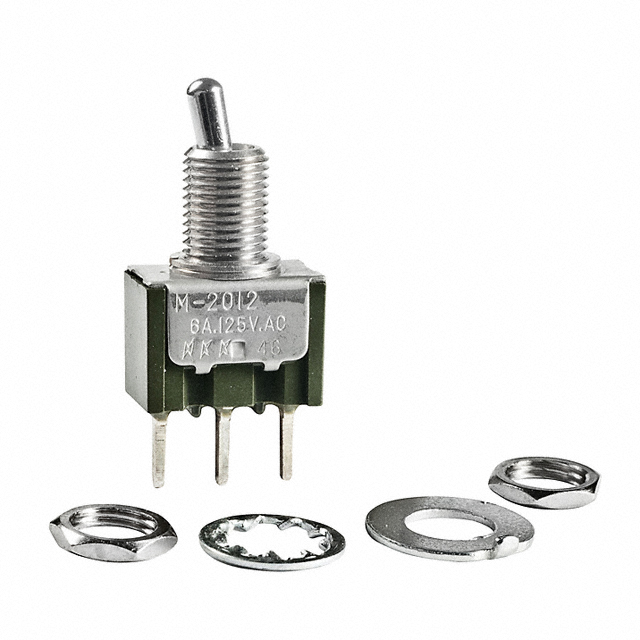

M2012S2S1W03
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2012S2S1W03
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2012S2S1W03 |
|---|---|
| Actuator Length [x] | 5.08 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
M2012S2 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Circuit | Actuator Material | Illumination | Current Rating (Amps) | Electrical Life | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Termination Style | Actuator Length [x] | Panel Cutout Dimensions [diameter] | Bushing Thread | Actuator Length [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round | PC Pin | 5.08 mm | 6.5 mm | 1/4-40 | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round | PC Pin | Unthreaded | 6.86 mm | Through Hole | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round | PC Pin | Unthreaded | 6.86 mm | Right Angle Through Hole Vertical | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round | PC Pin | 6.5 mm | 1/4-40 | 6.86 mm | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 0.4 VA | 50000 Cycles | 28 V | On-On | 28 V | Standard Round | PC Pin | 5.08 mm | Unthreaded | Right Angle Through Hole Vertical | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round | PC Pin | Unthreaded | 6.86 mm | Through Hole Right Angle | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 0.4 VA | 50000 Cycles | 28 V | On-On | 28 V | Standard Round | PC Pin | Unthreaded | 6.86 mm | Right Angle Through Hole Vertical | ||
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 0.4 VA | 50000 Cycles | 28 V | On-On | 28 V | Standard Round | PC Pin | 6.5 mm | 1/4-40 | 6.86 mm | Panel Mount Right Angle | |
NKK Switches | -30 ░C | 85 °C | Epoxy Sealed Terminals | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round | PC Pin | Unthreaded | 6.86 mm | Right Angle Through Hole Vertical | ||
NKK Switches | -30 ░C | 85 °C | Red Cap | SPDT | Brass Chrome Plated | Non-Illuminated | 4 A 6 A | 25000 Steps | 125 V | On-On | 30 V | Standard Round with Cap | PC Pin | Unthreaded | 6.86 mm | Through Hole Right Angle |
