031-6506

Active

AMPHENOL RF

CONN RPTNC JACK STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-6506

Active

AMPHENOL RF

CONN RPTNC JACK STR 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

031-65 Series

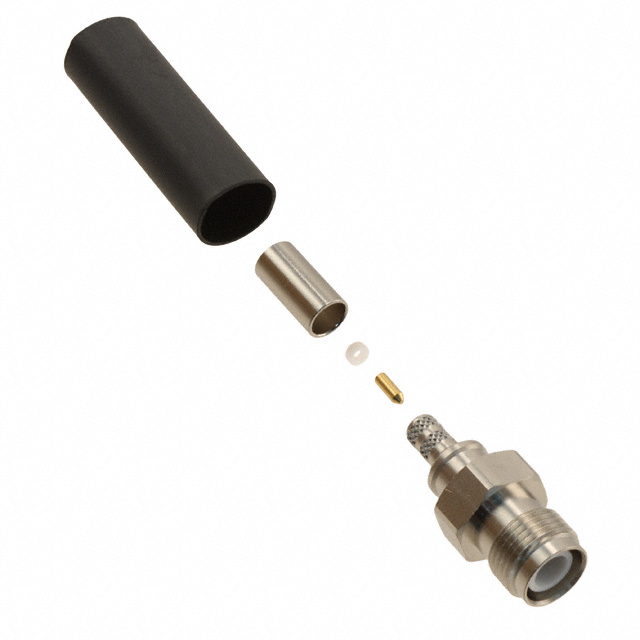

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-6506	031-65 Series

Body Finish	Nickel	Nickel, Gold
Body Material	Brass	Brass, Polybutylene Terephthalate (PBT), Glass Filled, Zinc Die Cast
Cable Group	Belden 7807A, LMR-200	Belden 7807A, LMR-200
Center Contact Material	Brass, Beryllium Copper	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	RP-TNC	RP-TNC, TNC, BNC
Connector Type	Male Pin, Jack	Male Pin, Jack, Plug, Female Socket
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polyetherimide (PEI), Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	-	Bayonet Lock
Features	-	Board Lock, Isolated
Frequency - Max [Max]	6000 MHz	1 - 6000 MHz
Housing Color	Silver	Silver, Gold, White, Natural
Impedance	50 Ohms	50 Ohms
Includes	1 Ferrule, 1 Connector, 1 Contact, 1 Heat Shrink, 1 Insulator	1 Heat Shrink, 1 Insulator, 1 Contact, 1 Connector, 1 Ferrule, 1 Nut, 1 Lockwasher, 1 Gasket, 1 End Cap, 2 Lockwashers, 2 Nuts
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Right Angle, Panel Mount, Free Hanging (In-Line), Through Hole, End Launch, Board Edge
Number of Ports	1	1 - 2
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-40 °C	-65 - -40 °C
Shield Termination	Crimp	Crimp, Solder
Voltage Rating	500 V	500 V
