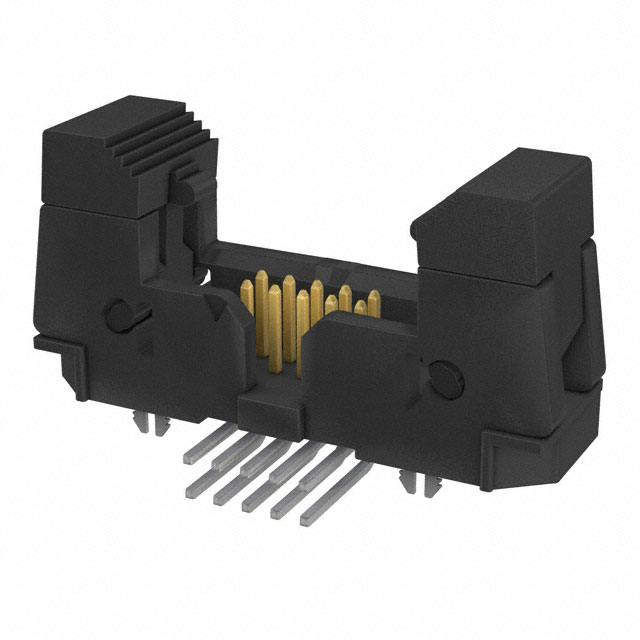

EHF-105-01-LM-D-RA

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 10 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

EHF-105-01-LM-D-RA

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 10 POS 1.27MM SOLDER RA SIDE ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-105-01-LM-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-105 Series

Part	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Fastening Type	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Number of Rows	Contact Finish - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Mounting Type	Contact Length - Mating	Contact Length - Mating	Features	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. EHF-105-01-L-D-SM	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-LM-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-F-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-F-D	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.107 "	2.71 mm	0.35 in	8.89 mm
Samtec Inc. EHF-105-01-F-D-SM-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-LM-D-RA			10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole Right Angle	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.09 "	2.29 mm
Samtec Inc. EHF-105-01-S-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-SM-D-SM-P-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-S-D-SM-P-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-SM-D	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.107 "	2.71 mm	0.35 in	8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	27	$ 5.73

Description

General part information

EHF-105 Series

Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
