EHF-105 Series

Catalog

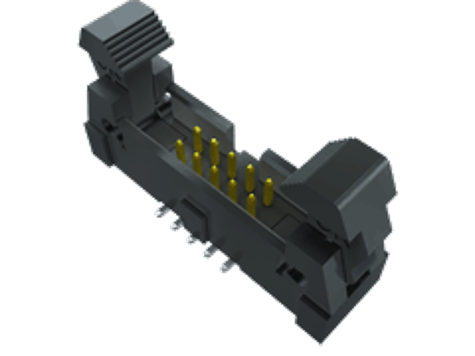

CONN HEADER SMD 10POS 1.27MM

Part	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Fastening Type	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Number of Rows	Contact Finish - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Mounting Type	Contact Length - Mating	Contact Length - Mating	Features	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. EHF-105-01-L-D-SM	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-LM-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-F-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-F-D	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.107 "	2.71 mm	0.35 in	8.89 mm
Samtec Inc. EHF-105-01-F-D-SM-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-LM-D-RA			10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole Right Angle	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.09 "	2.29 mm
Samtec Inc. EHF-105-01-S-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-SM-D-SM-P-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-S-D-SM-P-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-SM-D	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.107 "	2.71 mm	0.35 in	8.89 mm
