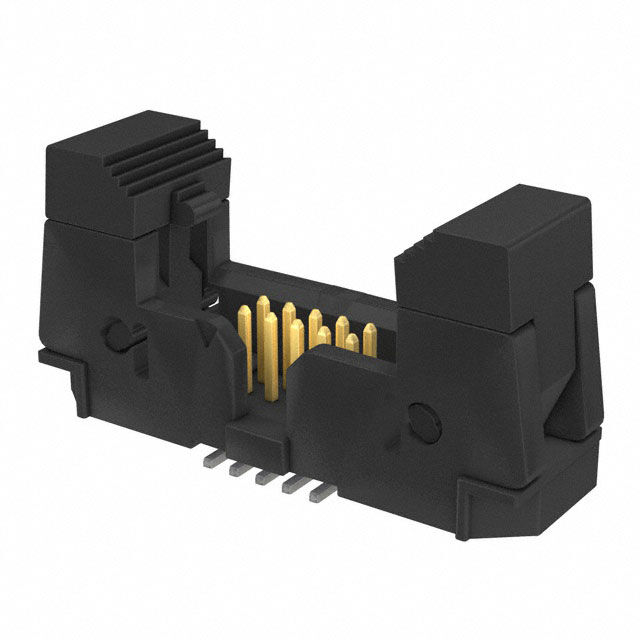

EHF-105-01-F-D-SM-K-TR

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 10 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN EHF Catalog +1

EHF-105-01-F-D-SM-K-TR

Active

Samtec Inc.

CONN EJECTOR HEADER HDR 10 POS 1.27MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsTechnical Data Sheet EN EHF Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-105-01-F-D-SM-K-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-105 Series

Part	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Fastening Type	Contact Material	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Number of Rows	Contact Finish - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Mounting Type	Contact Length - Mating	Contact Length - Mating	Features	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. EHF-105-01-L-D-SM	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-LM-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-F-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-F-D	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.107 "	2.71 mm	0.35 in	8.89 mm
Samtec Inc. EHF-105-01-F-D-SM-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	3 µin	0.076 µm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-LM-D-RA			10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	10 çin	0.25 çm	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole Right Angle	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.09 "	2.29 mm
Samtec Inc. EHF-105-01-S-D-SM-K-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-SM-D-SM-P-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-S-D-SM-P-TR	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Surface Mount	3.05 mm	0.12 in	Keying Slot Pick and Place	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin
Samtec Inc. EHF-105-01-SM-D	8.25 mm	0.325 in	10	-55 °C	125 °C	Shrouded - 4 Wall	Latch Lock/Eject Hooks	Phosphor Bronze	Male Pin	30 Áin	0.76 Ám	Header	Solder	2	Gold	Square	0.05 in	1.27 mm	Black	Through Hole	3.05 mm	0.12 in	Keying Slot	Board to Cable/Wire	All	0.05 in	1.27 mm	1.75 A	Tin	0.107 "	2.71 mm	0.35 in	8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.48
		10	$ 3.81
	Digi-Reel®	1	$ 4.48
		10	$ 3.81
	Tape & Reel (TR)	150	$ 3.15
		300	$ 3.00
		450	$ 2.91
		750	$ 2.81
		1050	$ 2.74
		1500	$ 2.67
		3750	$ 2.51
Newark	Each	1	$ 4.87
		10	$ 4.65
		100	$ 3.90
		500	$ 3.31
		1000	$ 2.80
		2500	$ 2.58
		5000	$ 2.52

Description

General part information

EHF-105 Series

Connector Header Surface Mount 10 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

EHF Catalog

Datasheet
