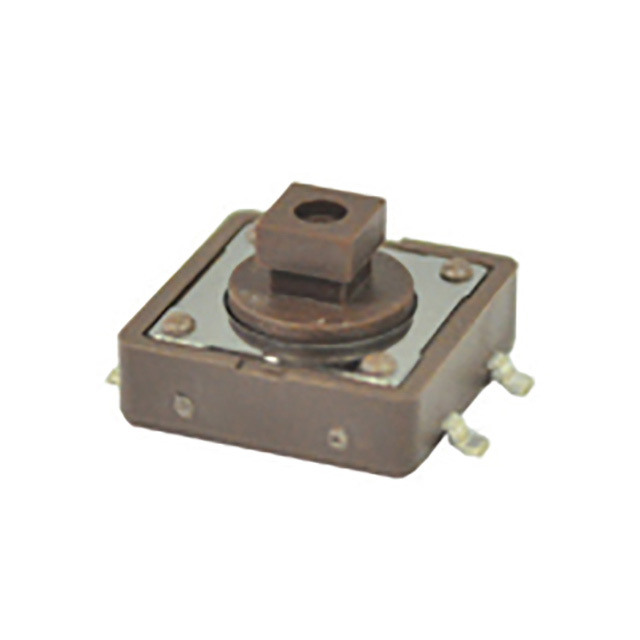

Specification	TL3300AF160QSSDOME

Actuator Height off PCB (Vertical)	7.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating (Current)	0.05 A
Features	Stainless Steel Contact Dome
Illumination	Non-Illuminated
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	160 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Outline Length	12 mm
Outline Width	12 mm
Switch Function	Off-Mom
Switch Travel	0.35 mm
Termination Style	Gull Wing

TL3300 Series

Part	Actuator Type	Operating Force	Actuator Height off PCB (Vertical)	Outline Width	Outline Length	Circuit	Contact Rating (Current)	Mounting Type	Switch Function	Actuator Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Illumination	Switch Travel	Mechanical Life (Cycles)	Features
E-Switch TL3300DF260Q	Standard	260 gf	4.3 mm	12 mm	12 mm	SPST-NO	0.05 A	Surface Mount	Off-Mom	Top Actuated	70 °C	-25 °C	Gull Wing	Non-Illuminated	0.35 mm	100000 Cycles
E-Switch TL3300AF260Q	Plunger for Cap	260 gf	7.3 mm	12 mm	12 mm	SPST-NO	0.05 A	Surface Mount	Off-Mom	Top Actuated	70 °C	-25 °C	Gull Wing	Non-Illuminated	0.35 mm	100000 Cycles
E-Switch TL3300AF160QSSDOME	Plunger for Cap	160 gf	7.3 mm	12 mm	12 mm	SPST-NO	0.05 A	Surface Mount	Off-Mom	Top Actuated	70 °C	-25 °C	Gull Wing	Non-Illuminated	0.35 mm	1000000 Cycles	Stainless Steel Contact Dome
E-Switch TL3300DF320Q	Standard	320 gf	4.3 mm	12 mm	12 mm	SPST-NO	0.05 A	Surface Mount	Off-Mom	Top Actuated	70 °C	-25 °C	Gull Wing	Non-Illuminated	0.35 mm	100000 Cycles
E-Switch TL3300CF160Q	Standard	160 gf	8.5 mm	12 mm	12 mm	SPST-NO	0.05 A	Surface Mount	Off-Mom	Top Actuated	70 °C	-25 °C	Gull Wing	Non-Illuminated	0.35 mm	200000 Cycles
E-Switch TL3300DF160Q	Standard	160 gf	4.3 mm	12 mm	12 mm	SPST-NO	0.05 A	Surface Mount	Off-Mom	Top Actuated	70 °C	-25 °C	Gull Wing	Non-Illuminated	0.35 mm	200000 Cycles
