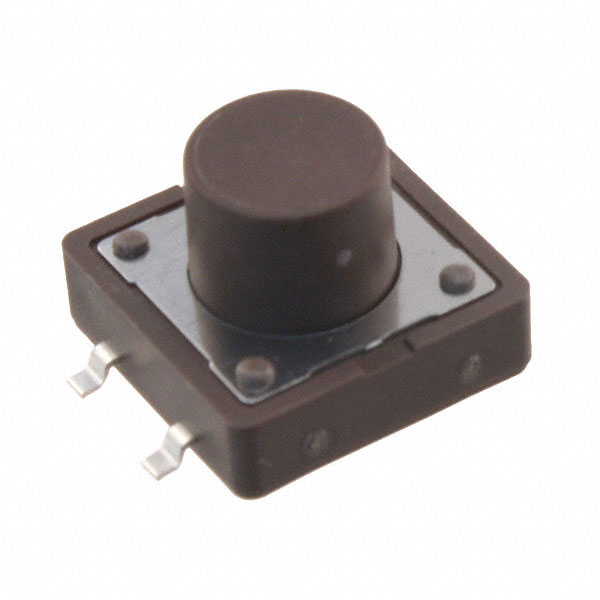

TL3300CF160Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL3300CF160Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3300CF160Q |
|---|---|
| Actuator Height off PCB, Vertical | 8.5 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 12 mm |
| Outline [y] | 12 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.35 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.52 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.65 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.52 | |||
| Tape & Reel (TR) | 400 | $ 0.46 | ||
| 800 | $ 0.43 | |||
| 1200 | $ 0.41 | |||
| 2000 | $ 0.40 | |||
| 2800 | $ 0.38 | |||
| 4000 | $ 0.37 | |||
| 10000 | $ 0.34 | |||
| 20000 | $ 0.31 | |||
Description
General part information
TL3300 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
No documents available
