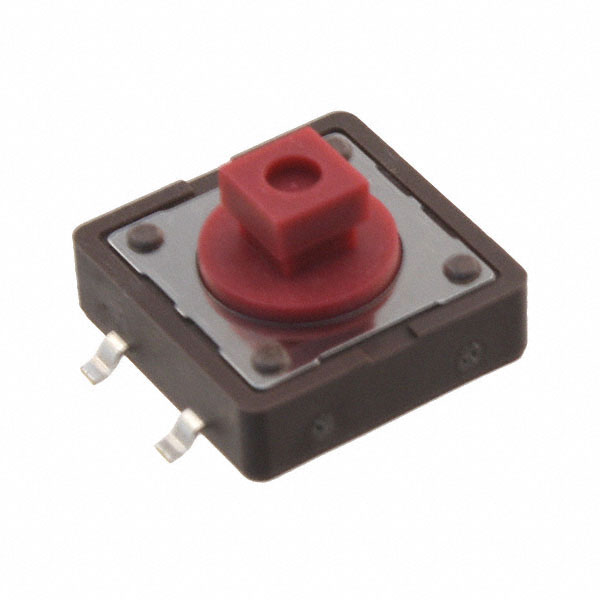

TL3300AF260Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL3300AF260Q
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3300AF260Q |
|---|---|
| Actuator Height off PCB, Vertical [z] | 7.3 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 12 mm |
| Outline [y] | 12 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.35 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.64 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 0.64 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| Tape & Reel (TR) | 500 | $ 0.30 | ||
| 1000 | $ 0.28 | |||
Description
General part information
TL3300 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
