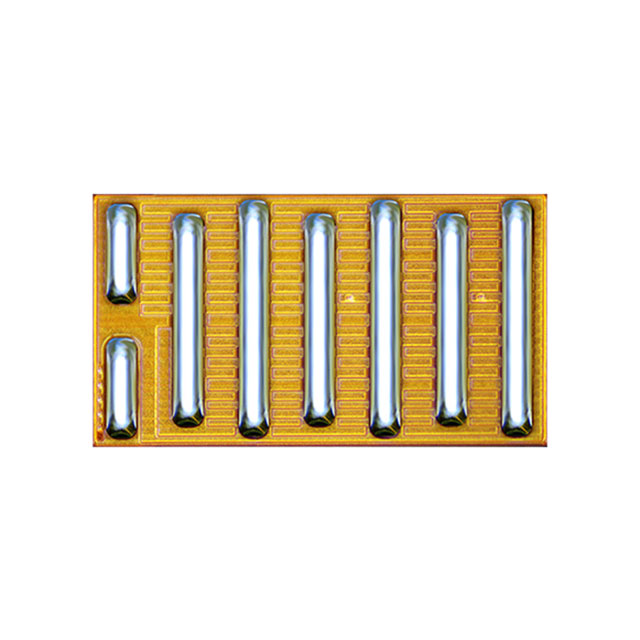

Specification	EPC2065

Current - Continuous Drain (Id) (Ta)	60 A
Drain to Source Voltage (Vdss)	80 V
Drive Voltage (Max Rds On, Min Rds On)	5 V
FET Type	N-Channel
Gate Charge (Max)	12.2 nC, 12.2 nC
Input Capacitance (Ciss) (Max)	1449 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Package / Case	Die
Package Name	Die
Rds On (Max)	3.6 mOhm
Technology	GaNFET (Gallium Nitride)
Vgs (Max) Positive	6 V
Vgs(th) (Max)	2.5 V

EPC20 Series

Part	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max) Negative	Vgs (Max) Positive	Vgs(th) (Max)	Input Capacitance (Ciss) (Max)	Gate Charge (Max)	Package / Case	Rds On (Max)	Drain to Source Voltage (Vdss)	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Current - Continuous Drain (Id) (Ta)	Mounting Type	Technology	FET Type
EPC EPC2015	5 V	-5 V	6 V	2.5 V	1200 pF	11.6 nC	Die	4 mOhm	40 V	-40 °C	150 °C	Die	33 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2055	5 V		6 V	2.5 V	1111 pF 1254 pF	8.5 nC	Die	3.6 mOhm 4.2 mOhm	40 V	-40 °C	150 °C	Die	29 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2007	5 V	-5 V	6 V	2.5 V	205 pF	2.8 nC 2.8 nC	Die	30 mOhm	100 V	-40 °C	125 °C	Die	6 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2014C	5 V		6 V	2.5 V		2.5 nC	Die	16 mOhm	40 V	-40 °C	150 °C	Die	10 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2051	5 V		6 V	2.5 V	258 pF	2.1 nC	Die	25 mOhm	100 V	-40 °C	150 °C	Die	1.7 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2029	5 V		6 V	2.5 V	1410 pF	13 nC	Die	3.2 mOhm	80 V	-40 °C	150 °C	Die	48 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2018	5 V	-5 V	6 V	2.5 V	540 pF	7.5 nC	Die	25 mOhm	150 V	-40 °C	125 °C	Die	12 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2044	5 V		6 V	2.5 V	664 pF	5.5 nC	Die	10.5 mOhm	100 V	-40 °C	150 °C	Die	9.4 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2016	5 V	-5 V	6 V	2.5 V	520 pF	5.2 nC	Die	16 mOhm 16 mOhm	100 V	-40 °C	125 °C	Die	11 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel
EPC EPC2021ENGR	5 V		6 V	2.5 V	1700 pF	15 nC	Die	2.5 mOhm	80 V	-40 °C	150 °C	Die	60 A	Surface Mount	GaNFET (Gallium Nitride)	N-Channel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EPC2065 | Datasheet
