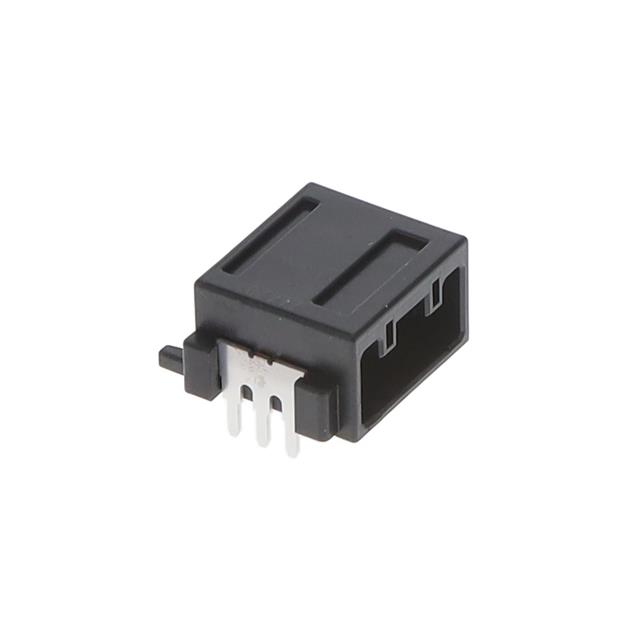

ZE05-4P-2H

Active

Hirose Electric USA, Inc.

CONN RECPT 4 POS

Deep-Dive with AI

Search across all available documentation for this part.

ZE05-4P-2H

Active

Hirose Electric USA, Inc.

CONN RECPT 4 POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZE05-4P-2H

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A, 2 A
Features	Solder Retention
Insulation Color	Black
Insulation Height [z]	1.457 "
Insulation Height [z]	37 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	60 VAC

HT802/ZE05 Series

Automotive Connectors Straight Receptacle, SMT Solder Tabs, 4 Position

Part	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Contact Termination	Contact Type	Insulation Material	Fastening Type	Connector Type	Mounting Type	Current Rating (Amps)	Termination	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Features	Number of Positions Loaded	Contact Finish - Post	Style	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Contact Material	Insulation Color	Voltage Rating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. ZE05-5S-HU/R	0.079 in	2 mm	125 °C	-40 °C	1	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Latch Lock	Plug	Free Hanging (In-Line)
Hirose Electric USA, Inc. ZE05-12DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in	12	Square	Brass	Black	60 VAC
Hirose Electric USA, Inc. ZE05-2S-HU/R	0.079 in	2 mm	125 °C	-40 °C	2	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Latch Lock	Plug	Free Hanging (In-Line)													2
Hirose Electric USA, Inc. ZE05-16DS-HU/R	0.079 in	2 mm	125 °C	-40 °C	2	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Latch Lock	Plug	Free Hanging (In-Line)																		16
Hirose Electric USA, Inc. ZE05-4S-HU/R	0.079 in	2 mm	125 °C	-40 °C	1	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Locking Ramp	Plug	Free Hanging (In-Line)													4
Hirose Electric USA, Inc. ZE05-16DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in		Square	Brass	Black	60 VAC	16
Hirose Electric USA, Inc. ZE05-4P-2H			125 °C	-40 °C	1			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire			4	Square	Brass	Black	60 VAC		1 çm	39.4 çin	1.457 "	37 mm	1 µm	39.4 µin
Hirose Electric USA, Inc. ZE05-20DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in	20	Square	Brass	Black	60 VAC
Hirose Electric USA, Inc. ZE05-8DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in	8	Square	Brass	Black	60 VAC		1 çm	39.4 çin			1 µm	39.4 µin
Hirose Electric USA, Inc. ZE05-2P-2H			125 °C	-40 °C	1			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire			2	Square	Brass	Black	60 VAC				1.457 "	37 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.83
		10	$ 1.59
		25	$ 1.52
		50	$ 1.49
		100	$ 1.42
	Tape & Reel (TR)	300	$ 1.27
		600	$ 1.17
		900	$ 1.14
		1500	$ 0.97
		3000	$ 0.94
		7500	$ 0.89

Description

General part information

HT802/ZE05 Series

Automotive Connectors Straight Receptacle, SMT Solder Tabs, 4 Position

Documents

Technical documentation and resources

No documents available
