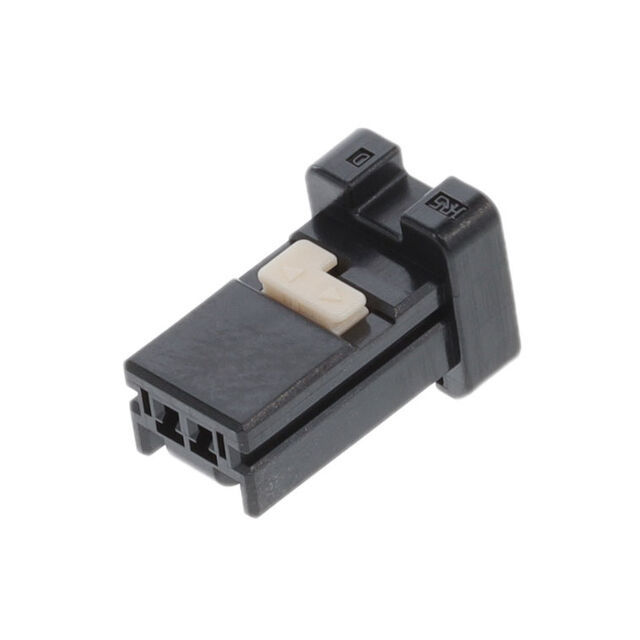

ZE05-2S-HU/R

Active

Hirose Electric USA, Inc.

CONN PLUG 2 POS

Deep-Dive with AI

Search across all available documentation for this part.

ZE05-2S-HU/R

Active

Hirose Electric USA, Inc.

CONN PLUG 2 POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZE05-2S-HU/R

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

HT802/ZE05 Series

Automotive Connectors Straight Receptacle, SMT Solder Tabs, 4 Position

Part	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Color	Contact Termination	Contact Type	Insulation Material	Fastening Type	Connector Type	Mounting Type	Current Rating (Amps)	Termination	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Features	Number of Positions Loaded	Contact Finish - Post	Style	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Contact Material	Insulation Color	Voltage Rating	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. ZE05-5S-HU/R	0.079 in	2 mm	125 °C	-40 °C	1	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Latch Lock	Plug	Free Hanging (In-Line)
Hirose Electric USA, Inc. ZE05-12DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in	12	Square	Brass	Black	60 VAC
Hirose Electric USA, Inc. ZE05-2S-HU/R	0.079 in	2 mm	125 °C	-40 °C	2	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Latch Lock	Plug	Free Hanging (In-Line)													2
Hirose Electric USA, Inc. ZE05-16DS-HU/R	0.079 in	2 mm	125 °C	-40 °C	2	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Latch Lock	Plug	Free Hanging (In-Line)																		16
Hirose Electric USA, Inc. ZE05-4S-HU/R	0.079 in	2 mm	125 °C	-40 °C	1	Black	Crimp	Female Socket	Nylon Polyamide (PA)	Locking Ramp	Plug	Free Hanging (In-Line)													4
Hirose Electric USA, Inc. ZE05-16DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in		Square	Brass	Black	60 VAC	16
Hirose Electric USA, Inc. ZE05-4P-2H			125 °C	-40 °C	1			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire			4	Square	Brass	Black	60 VAC		1 çm	39.4 çin	1.457 "	37 mm	1 µm	39.4 µin
Hirose Electric USA, Inc. ZE05-20DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in	20	Square	Brass	Black	60 VAC
Hirose Electric USA, Inc. ZE05-8DP-2H			125 °C	-40 °C	2			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire	8.84 mm	0.348 in	8	Square	Brass	Black	60 VAC		1 çm	39.4 çin			1 µm	39.4 µin
Hirose Electric USA, Inc. ZE05-2P-2H			125 °C	-40 °C	1			Male Pin	Nylon Polyamide (PA)		Header	Surface Mount Right Angle	2 A 5 A	Solder	Shrouded - 4 Wall	0.079 in	2 mm	UL94 V-0	Solder Retention	All	Tin	Board to Cable/Wire			2	Square	Brass	Black	60 VAC				1.457 "	37 mm
