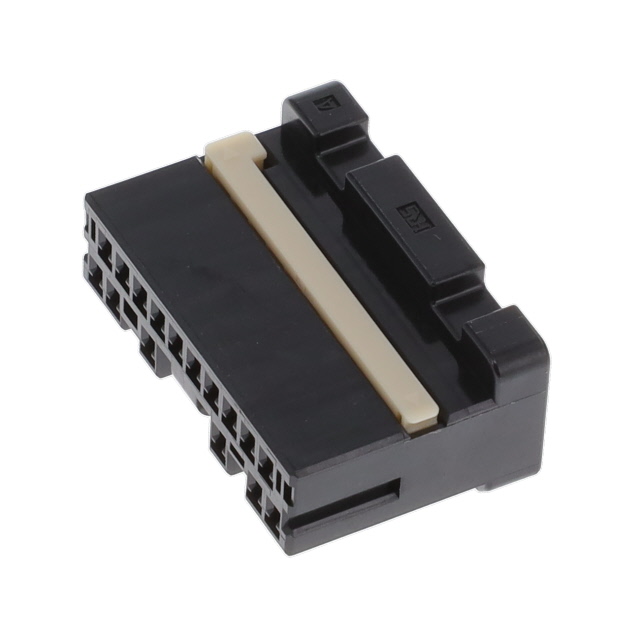

ZE05-16DS-HU/R
ActiveHirose Electric USA, Inc.
CONN PLUG HSG 16POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZE05-16DS-HU/R
ActiveHirose Electric USA, Inc.
CONN PLUG HSG 16POS 2.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZE05-16DS-HU/R |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
HT802/ZE05 Series
Automotive Connectors Straight Receptacle, SMT Solder Tabs, 4 Position
| Part | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Color | Contact Termination | Contact Type | Insulation Material | Fastening Type | Connector Type | Mounting Type | Current Rating (Amps) | Termination | Shrouding | Pitch - Mating [x] | Pitch - Mating [x] | Material Flammability Rating | Features | Number of Positions Loaded | Contact Finish - Post | Style | Insulation Height | Insulation Height | Number of Positions | Contact Shape | Contact Material | Insulation Color | Voltage Rating | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 0.079 in | 2 mm | 125 °C | -40 °C | 1 | Black | Crimp | Female Socket | Nylon Polyamide (PA) | Latch Lock | Plug | Free Hanging (In-Line) | ||||||||||||||||||||||||
Hirose Electric USA, Inc. | 125 °C | -40 °C | 2 | Male Pin | Nylon Polyamide (PA) | Header | Surface Mount Right Angle | 2 A 5 A | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | UL94 V-0 | Solder Retention | All | Tin | Board to Cable/Wire | 8.84 mm | 0.348 in | 12 | Square | Brass | Black | 60 VAC | ||||||||||||
Hirose Electric USA, Inc. | 0.079 in | 2 mm | 125 °C | -40 °C | 2 | Black | Crimp | Female Socket | Nylon Polyamide (PA) | Latch Lock | Plug | Free Hanging (In-Line) | 2 | |||||||||||||||||||||||
Hirose Electric USA, Inc. | 0.079 in | 2 mm | 125 °C | -40 °C | 2 | Black | Crimp | Female Socket | Nylon Polyamide (PA) | Latch Lock | Plug | Free Hanging (In-Line) | 16 | |||||||||||||||||||||||
Hirose Electric USA, Inc. | 0.079 in | 2 mm | 125 °C | -40 °C | 1 | Black | Crimp | Female Socket | Nylon Polyamide (PA) | Locking Ramp | Plug | Free Hanging (In-Line) | 4 | |||||||||||||||||||||||
Hirose Electric USA, Inc. | 125 °C | -40 °C | 2 | Male Pin | Nylon Polyamide (PA) | Header | Surface Mount Right Angle | 2 A 5 A | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | UL94 V-0 | Solder Retention | All | Tin | Board to Cable/Wire | 8.84 mm | 0.348 in | Square | Brass | Black | 60 VAC | 16 | ||||||||||||
Hirose Electric USA, Inc. | 125 °C | -40 °C | 1 | Male Pin | Nylon Polyamide (PA) | Header | Surface Mount Right Angle | 2 A 5 A | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | UL94 V-0 | Solder Retention | All | Tin | Board to Cable/Wire | 4 | Square | Brass | Black | 60 VAC | 1 çm | 39.4 çin | 1.457 " | 37 mm | 1 µm | 39.4 µin | ||||||||
Hirose Electric USA, Inc. | 125 °C | -40 °C | 2 | Male Pin | Nylon Polyamide (PA) | Header | Surface Mount Right Angle | 2 A 5 A | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | UL94 V-0 | Solder Retention | All | Tin | Board to Cable/Wire | 8.84 mm | 0.348 in | 20 | Square | Brass | Black | 60 VAC | ||||||||||||
Hirose Electric USA, Inc. | 125 °C | -40 °C | 2 | Male Pin | Nylon Polyamide (PA) | Header | Surface Mount Right Angle | 2 A 5 A | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | UL94 V-0 | Solder Retention | All | Tin | Board to Cable/Wire | 8.84 mm | 0.348 in | 8 | Square | Brass | Black | 60 VAC | 1 çm | 39.4 çin | 1 µm | 39.4 µin | ||||||||
Hirose Electric USA, Inc. | 125 °C | -40 °C | 1 | Male Pin | Nylon Polyamide (PA) | Header | Surface Mount Right Angle | 2 A 5 A | Solder | Shrouded - 4 Wall | 0.079 in | 2 mm | UL94 V-0 | Solder Retention | All | Tin | Board to Cable/Wire | 2 | Square | Brass | Black | 60 VAC | 1.457 " | 37 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.00 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.37 | |||
| 40 | $ 1.30 | |||
| 80 | $ 1.20 | |||
| 230 | $ 1.07 | |||
| 440 | $ 1.00 | |||
| 945 | $ 0.92 | |||
| 2400 | $ 0.84 | |||
Description
General part information
HT802/ZE05 Series
Automotive Connectors Straight Receptacle, SMT Solder Tabs, 4 Position
