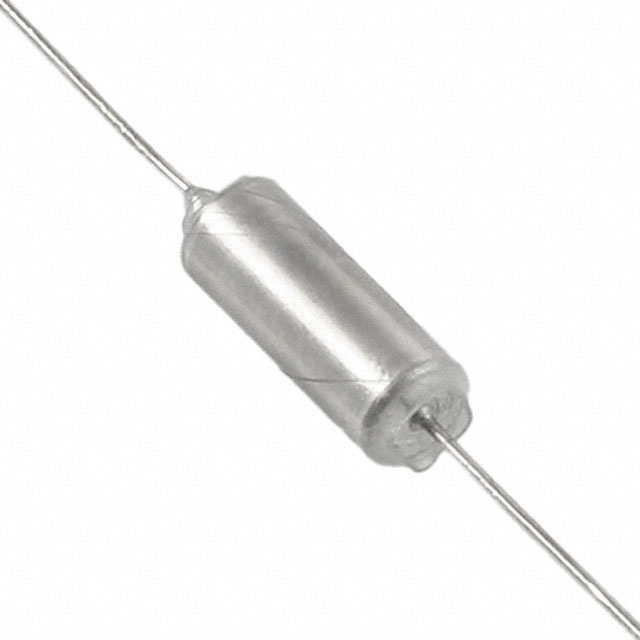

T110B226K015AT

Active

KEMET

CAP 22UF 15VDC 10% 4.7 X 12.04MM AXL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Datasheet +1

T110B226K015AT

Active

KEMET

CAP 22UF 15VDC 10% 4.7 X 12.04MM AXL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T110B226K015AT

Capacitance	22 µF
ESR (Equivalent Series Resistance)	2 Ohms
Features	General Purpose
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.185 in
Size / Dimension [diameter]	4.7 mm
Size / Dimension [x]	0.474 in
Size / Dimension [x]	12.04 mm
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	15 V

T110B Series

Part	Features	Package / Case	Capacitance	Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage - Rated	Mounting Type	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Qualification	Grade	Tolerance
KEMET T110B475J050AS	General Purpose	Axial	4.7 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	50 VDC	Through Hole	B	-55 °C	125 °C	2.5 Ohm	MIL-PRF-39003/1	Military	5 %
KEMET T110B126K020AS	General Purpose	Axial	12 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	20 V	Through Hole	B	-55 °C	125 °C	2.9 Ohm	MIL-PRF-39003/1	Military	10 %
KEMET T110B396K010AS	General Purpose	Axial	39 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	10 V	Through Hole	B	-55 °C	125 °C	2.1 Ohm			10 %
KEMET T110B226M015AS	General Purpose	Axial	22 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	15 V	Through Hole	B	-55 °C	125 °C	2 Ohm	MIL-PRF-39003/1	Military	20 %
KEMET T110B335K035AT	General Purpose	Axial	3.3 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	35 V	Through Hole	B	-55 °C	125 °C	4 Ohm			10 %
KEMET T110B475K035AS	General Purpose	Axial	4.7 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	35 V	Through Hole	B	-55 °C	125 °C	3 Ohm			10 %
KEMET T110B226K015AT	General Purpose	Axial	22 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	15 V	Through Hole	B	-55 °C	125 °C	2 Ohms			10 %
KEMET T110B565K035AS	General Purpose	Axial	5.6 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	35 V	Through Hole	B	-55 °C	125 °C	3 Ohm	MIL-PRF-39003/1	Military	10 %
KEMET T110B156K020AS	General Purpose	Axial	15 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	20 V	Through Hole	B	-55 °C	125 °C	2.3 Ohm			10 %
KEMET T110B336K010AT	General Purpose	Axial	3.3 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	10 V	Through Hole	B	-55 °C	125 °C	2.1 Ohm			10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.25
		10	$ 8.61
		75	$ 7.36
		150	$ 7.07
		525	$ 6.67
		1050	$ 6.50
Newark	Each	1	$ 12.30
		10	$ 9.38
		25	$ 8.94
		50	$ 8.50
		100	$ 6.80
		250	$ 6.71
		500	$ 6.60

Description

General part information

T110B Series

22 µF Hermetically Sealed Tantalum Capacitors 15 V Axial 2Ohm

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet
