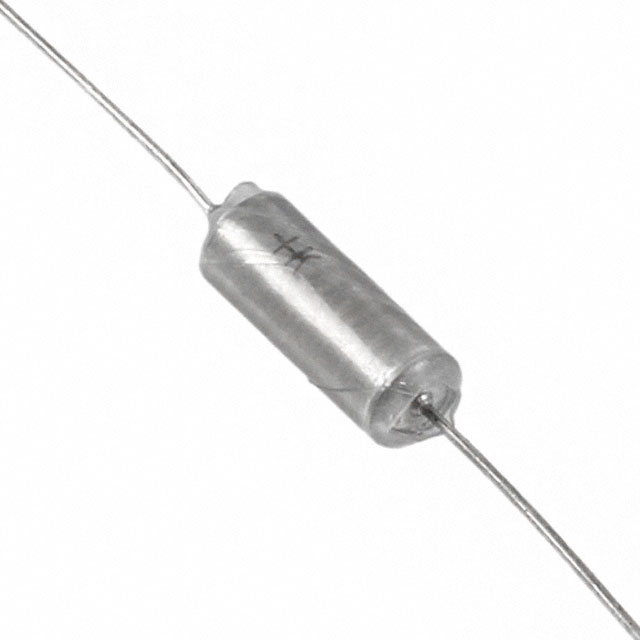

T110B396K010AS

Active

KEMET

CAP TANT 39UF 10% 10V AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T110B396K010AS

T110B396K010AS

Active

KEMET

CAP TANT 39UF 10% 10V AXIAL

Deep-Dive with AI

DocumentsDatasheet T110B396K010AS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T110B396K010AS

Capacitance	39 µF
ESR (Equivalent Series Resistance)	2.1 Ohm
Features	General Purpose
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.185 in
Size / Dimension [diameter]	4.7 mm
Size / Dimension [x]	0.474 in
Size / Dimension [x]	12.04 mm
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	10 V

T110B Series

Part	Features	Package / Case	Capacitance	Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage - Rated	Mounting Type	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Qualification	Grade	Tolerance
KEMET T110B475J050AS	General Purpose	Axial	4.7 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	50 VDC	Through Hole	B	-55 °C	125 °C	2.5 Ohm	MIL-PRF-39003/1	Military	5 %
KEMET T110B126K020AS	General Purpose	Axial	12 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	20 V	Through Hole	B	-55 °C	125 °C	2.9 Ohm	MIL-PRF-39003/1	Military	10 %
KEMET T110B396K010AS	General Purpose	Axial	39 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	10 V	Through Hole	B	-55 °C	125 °C	2.1 Ohm			10 %
KEMET T110B226M015AS	General Purpose	Axial	22 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	15 V	Through Hole	B	-55 °C	125 °C	2 Ohm	MIL-PRF-39003/1	Military	20 %
KEMET T110B335K035AT	General Purpose	Axial	3.3 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	35 V	Through Hole	B	-55 °C	125 °C	4 Ohm			10 %
KEMET T110B475K035AS	General Purpose	Axial	4.7 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	35 V	Through Hole	B	-55 °C	125 °C	3 Ohm			10 %
KEMET T110B226K015AT	General Purpose	Axial	22 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	15 V	Through Hole	B	-55 °C	125 °C	2 Ohms			10 %
KEMET T110B565K035AS	General Purpose	Axial	5.6 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	35 V	Through Hole	B	-55 °C	125 °C	3 Ohm	MIL-PRF-39003/1	Military	10 %
KEMET T110B156K020AS	General Purpose	Axial	15 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	20 V	Through Hole	B	-55 °C	125 °C	2.3 Ohm			10 %
KEMET T110B336K010AT	General Purpose	Axial	3.3 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	10 V	Through Hole	B	-55 °C	125 °C	2.1 Ohm			10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.91
		10	$ 8.59
		75	$ 7.71
		150	$ 6.69
		525	$ 6.05
		1050	$ 5.61
