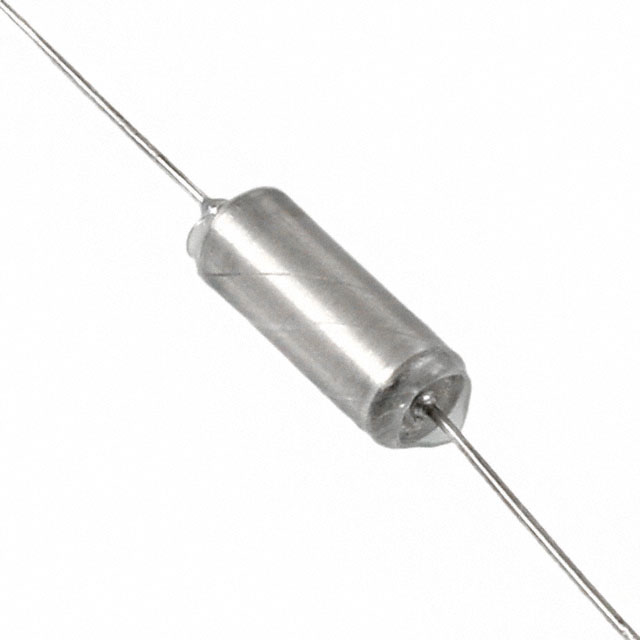

T110B475K035AS

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 10% +TOL, 10% -TOL, 4.7UF, THROUGH HOLE MOUNT, AXIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T110B475K035AS

T110B475K035AS

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 35V, 10% +TOL, 10% -TOL, 4.7UF, THROUGH HOLE MOUNT, AXIAL LEADED

Deep-Dive with AI

DocumentsDatasheet T110B475K035AS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T110B475K035AS

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	3 Ohm
Features	General Purpose
Manufacturer Size Code	B
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.185 in
Size / Dimension [diameter]	4.7 mm
Size / Dimension [x]	0.474 in
Size / Dimension [x]	12.04 mm
Tolerance	10 %
Type	Hermetically Sealed
Voltage - Rated	35 V

T110B Series

Part	Features	Package / Case	Capacitance	Type	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage - Rated	Mounting Type	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	ESR (Equivalent Series Resistance)	Qualification	Grade	Tolerance
KEMET T110B475J050AS	General Purpose	Axial	4.7 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	50 VDC	Through Hole	B	-55 °C	125 °C	2.5 Ohm	MIL-PRF-39003/1	Military	5 %
KEMET T110B126K020AS	General Purpose	Axial	12 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	20 V	Through Hole	B	-55 °C	125 °C	2.9 Ohm	MIL-PRF-39003/1	Military	10 %
KEMET T110B396K010AS	General Purpose	Axial	39 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	10 V	Through Hole	B	-55 °C	125 °C	2.1 Ohm			10 %
KEMET T110B226M015AS	General Purpose	Axial	22 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	15 V	Through Hole	B	-55 °C	125 °C	2 Ohm	MIL-PRF-39003/1	Military	20 %
KEMET T110B335K035AT	General Purpose	Axial	3.3 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	35 V	Through Hole	B	-55 °C	125 °C	4 Ohm			10 %
KEMET T110B475K035AS	General Purpose	Axial	4.7 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	35 V	Through Hole	B	-55 °C	125 °C	3 Ohm			10 %
KEMET T110B226K015AT	General Purpose	Axial	22 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	15 V	Through Hole	B	-55 °C	125 °C	2 Ohms			10 %
KEMET T110B565K035AS	General Purpose	Axial	5.6 µF	Hermetically Sealed	0.185 "	0.185 in	4.7 mm	4.7 mm	35 V	Through Hole	B	-55 °C	125 °C	3 Ohm	MIL-PRF-39003/1	Military	10 %
KEMET T110B156K020AS	General Purpose	Axial	15 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	20 V	Through Hole	B	-55 °C	125 °C	2.3 Ohm			10 %
KEMET T110B336K010AT	General Purpose	Axial	3.3 µF	Hermetically Sealed	0.474 in	0.185 in	4.7 mm	12.04 mm	10 V	Through Hole	B	-55 °C	125 °C	2.1 Ohm			10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.39
		10	$ 7.91
		75	$ 6.74
		150	$ 6.47
		525	$ 6.09
		1050	$ 5.93
Newark	Each	1	$ 10.26
		10	$ 8.89
		25	$ 8.59
		50	$ 8.29
		100	$ 6.66
		250	$ 6.50
		500	$ 6.34
