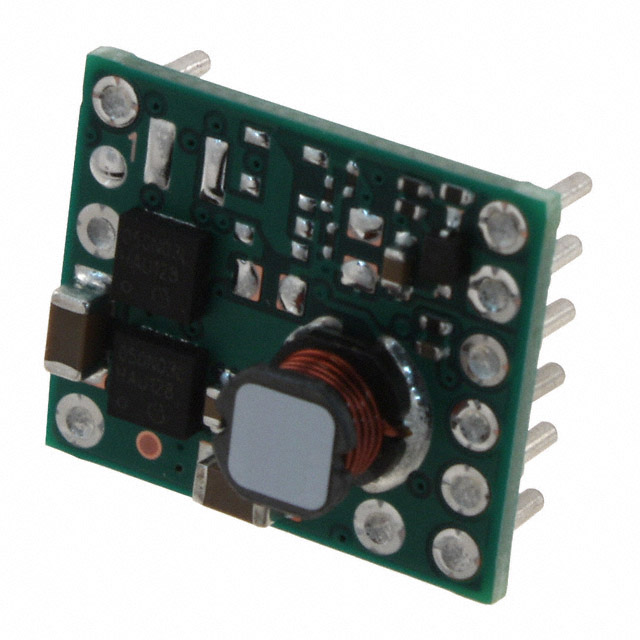

PTH08T230WAD - PTH08T230WAD

PTH08T230WAD

Active
Texas Instruments

6-A, 4.5V TO 14V INPUT, NON-ISOLATED, WIDE OUTPUT ADJUSTABLE POWER MODULE WITH TURBOTRANS 10-THROUGH-HOLE MODULE -40 TO 85

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetPower Two Xilinx(TM) LX240 Virtex-6(TM) Devices+6
PTH08T230WAD - PTH08T230WAD

PTH08T230WAD

Active
Texas Instruments

6-A, 4.5V TO 14V INPUT, NON-ISOLATED, WIDE OUTPUT ADJUSTABLE POWER MODULE WITH TURBOTRANS 10-THROUGH-HOLE MODULE -40 TO 85

Deep-Dive with AI

DocumentsDatasheetPower Two Xilinx(TM) LX240 Virtex-6(TM) Devices+6

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationPTH08T230WADPTH08 Series
ApplicationsITE (Commercial)ITE (Commercial)
Current - Output (Max) [Max]6 A3 - 50 A
Efficiency95 %90 - 95 %
Features-UVLO, Remote On/Off, OCP, OTP
Mounting TypeThrough HoleSurface Mount, Through Hole
Number of Outputs11
Operating Temperature [Max]85 °C85 °C
Operating Temperature [Min]-40 °C-40 °C
Package / Case10-DIP Module22-SMD Module, 14-SMD Module, 11-SMD Module, 10-SMD Module, 10-DIP Module, 11-DIP Module, 22-DIP Module, 14-DIP Module
Size / Dimension-9.4 mm
Size / Dimension-15.8 mm
Size / Dimension [x]0.75 "0.75 - 1.52 "
Size / Dimension [x]19.1 mm19.1 - 38.6 mm
Size / Dimension [y]15.7 mm15.7 - 25.9 mm
Size / Dimension [y]0.62 "0.62 - 1.02 "
Size / Dimension [z]8.6 mm8.5 - 10.2 mm
Size / Dimension [z]0.34 "0.34 - 0.4 in
TypeNon-Isolated PoL ModuleNon-Isolated PoL Module
Voltage - Input (Max) [Max]14 V14 V
Voltage - Input (Min) [Min]4.5 V4.5 - 8 V
Voltage - Output 1 [Max]5.5 V2 - 5.5 V
Voltage - Output 1 [Min]0.69 V0.69 - 3 V
