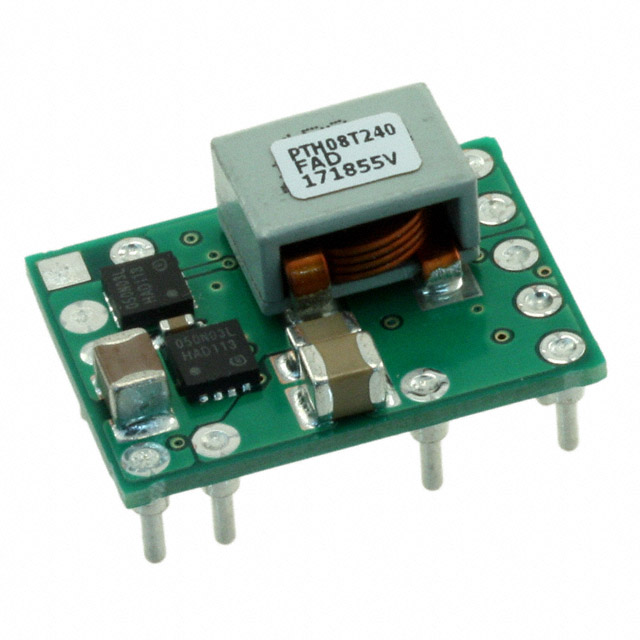

PTH08T240FAD
ActiveTexas Instruments
10-A, 4.5-V TO 14-V INPUT, POWER MODULE FOR 3-GHZ DSP SYSTEMS
Deep-Dive with AI
Search across all available documentation for this part.
PTH08T240FAD
ActiveTexas Instruments
10-A, 4.5-V TO 14-V INPUT, POWER MODULE FOR 3-GHZ DSP SYSTEMS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PTH08T240FAD | PTH08 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 10 A | 3 - 50 A |
| Efficiency | 90 % | 90 - 95 % |
| Features | - | UVLO, Remote On/Off, OCP, OTP |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 11-DIP Module | 22-SMD Module, 14-SMD Module, 11-SMD Module, 10-SMD Module, 10-DIP Module, 11-DIP Module, 22-DIP Module, 14-DIP Module |
| Size / Dimension | - | 9.4 mm |
| Size / Dimension | - | 15.8 mm |
| Size / Dimension [x] | 0.87 in | 0.75 - 1.52 " |
| Size / Dimension [x] | 22.1 mm | 19.1 - 38.6 mm |
| Size / Dimension [y] | 15.7 mm | 15.7 - 25.9 mm |
| Size / Dimension [y] | 0.62 " | 0.62 - 1.02 " |
| Size / Dimension [z] | 8.6 mm | 8.5 - 10.2 mm |
| Size / Dimension [z] | 0.34 " | 0.34 - 0.4 in |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V | 14 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 - 8 V |
| Voltage - Output 1 [Max] | 2 V | 2 - 5.5 V |
| Voltage - Output 1 [Min] | 0.69 V | 0.69 - 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 16.61 | |
| Texas Instruments | TIW TRAY | 1 | $ 24.26 | |
| 100 | $ 21.19 | |||
| 250 | $ 16.34 | |||
| 1000 | $ 14.61 | |||
PTH08 Series
10-A, 4.5V to 14V Input, Non-Isolated, Wide Output Adjustable Power Module with TurboTrans
| Part | Number of Outputs | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Features | Mounting Type | Voltage - Input (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Type | Voltage - Input (Max) [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Efficiency | Applications | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments PTH08T250WAS | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 10.2 mm | 1.52 " | 0.4 in | 50 A | 94 % | ITE (Commercial) | ||
Texas Instruments PTH08T210WAS | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 5.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 14-SMD Module | 0.62 " | 34.8 mm | 1.37 in | 0.37 in | 25 A | 93 % | ITE (Commercial) | 9.4 mm | 15.8 mm | ||
Texas Instruments PTH08T220WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T221WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T261WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T231WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-DIP Module | 15.7 mm | 0.62 " | 19.1 mm | 8.6 mm | 0.75 " | 0.34 " | 6 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T221WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-DIP Module | 19.1 mm | 0.75 in | 22.1 mm | 8.6 mm | 0.87 in | 0.34 " | 16 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T260WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T240WAH | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-DIP Module | 15.7 mm | 0.62 " | 22.1 mm | 8.6 mm | 0.87 in | 0.34 " | 10 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T240WAST | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.8 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T255WAD | 1 | 5.25 V | 3 V | Through Hole | 8 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-DIP Module | 25.9 mm | 1.02 " | 38.6 mm | 9.7 mm | 1.52 " | 0.38 " | 40 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T255WAZ | 1 | 5.25 V | 3 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 8 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 10.2 mm | 1.52 " | 0.4 in | 40 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T240FAD | 1 | 2 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-DIP Module | 15.7 mm | 0.62 " | 22.1 mm | 8.6 mm | 0.87 in | 0.34 " | 10 A | 90 % | ITE (Commercial) | |||
Texas Instruments PTH08T230WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T250WAD | 1 | 3.6 V | 0.7 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-DIP Module | 25.9 mm | 1.02 " | 38.6 mm | 9.7 mm | 1.52 " | 0.38 " | 50 A | 94 % | ITE (Commercial) | |||
Texas Instruments PTH08T230WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T230WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T255WAS | 1 | 5.25 V | 3 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 8 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 10.2 mm | 1.52 " | 0.4 in | 40 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T240FAS | 1 | 2 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.7 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 90 % | ITE (Commercial) | ||
Texas Instruments PTH08T241WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.8 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T260WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-DIP Module | 15.7 mm | 0.62 " | 19.1 mm | 8.6 mm | 0.75 " | 0.34 " | 3 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T210WAZ | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 5.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 14-SMD Module | 0.62 " | 34.8 mm | 1.37 in | 0.37 in | 25 A | 93 % | ITE (Commercial) | 9.4 mm | 15.8 mm | ||
Texas Instruments PTH08T231WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T250WAST | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 9.7 mm | 1.52 " | 0.38 " | 50 A | 94 % | ITE (Commercial) | ||
Texas Instruments PTH08T261WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-DIP Module | 15.7 mm | 0.62 " | 19.1 mm | 8.6 mm | 0.75 " | 0.34 " | 3 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T230WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-DIP Module | 15.7 mm | 0.62 " | 19.1 mm | 8.6 mm | 0.75 " | 0.34 " | 6 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T220WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-DIP Module | 19.1 mm | 0.75 in | 22.1 mm | 8.6 mm | 0.87 in | 0.34 " | 16 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T250WAZT | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 9.7 mm | 1.52 " | 0.38 " | 50 A | 94 % | ITE (Commercial) | ||
Texas Instruments PTH08T220WAST | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T260WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T221WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T261WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T261WAST | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T241WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.8 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T220WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T221WAST | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T231WAST | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T240WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.8 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T231WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T210WAH | 1 | 3.6 V | 0.7 V | Through Hole | 5.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 14-DIP Module | 15.8 mm | 0.62 " | 34.8 mm | 8.5 mm | 1.37 in | 0.34 " | 25 A | 93 % | ITE (Commercial) | |||
Texas Instruments PTH08T240FAZ | 1 | 2 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.7 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 90 % | ITE (Commercial) | ||
Texas Instruments PTH08T210WAST | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 5.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 14-SMD Module | 0.62 " | 34.8 mm | 1.37 in | 0.37 in | 25 A | 93 % | ITE (Commercial) | 9.4 mm | 15.8 mm | ||
Texas Instruments PTH08T231WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 6 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T250WAZ | 1 | 3.6 V | 0.7 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 10.2 mm | 1.52 " | 0.4 in | 50 A | 94 % | ITE (Commercial) | ||
Texas Instruments PTH08T240WAS | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.8 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T240WAD | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-DIP Module | 15.7 mm | 0.62 " | 22.1 mm | 8.6 mm | 0.87 in | 0.34 " | 10 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T240WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 15.8 mm | 0.62 " | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 10 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T220WAH | 1 | 5.5 V | 0.69 V | Through Hole | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-DIP Module | 19.1 mm | 0.75 in | 22.1 mm | 8.6 mm | 0.87 in | 0.34 " | 16 A | 95 % | ITE (Commercial) | |||
Texas Instruments PTH08T255WAZT | 1 | 5.25 V | 3 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 8 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 22-SMD Module | 25.9 mm | 1.02 " | 38.6 mm | 10.2 mm | 1.52 " | 0.4 in | 40 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T260WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T221WAZ | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T210WAD | 1 | 3.6 V | 0.7 V | Through Hole | 5.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 14-DIP Module | 15.8 mm | 0.62 " | 34.8 mm | 8.5 mm | 1.37 in | 0.34 " | 25 A | 93 % | ITE (Commercial) | |||
Texas Instruments PTH08T220WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 11-SMD Module | 19.1 mm | 0.75 in | 22.1 mm | 9.1 mm | 0.87 in | 0.36 in | 16 A | 95 % | ITE (Commercial) | ||
Texas Instruments PTH08T261WAZT | 1 | 5.5 V | 0.69 V | OCP, OTP, Remote On/Off, UVLO | Surface Mount | 4.5 V | -40 °C | 85 °C | Non-Isolated PoL Module | 14 V | 10-SMD Module | 15.7 mm | 0.62 " | 19.1 mm | 9.1 mm | 0.75 " | 0.36 in | 3 A | 95 % | ITE (Commercial) |
Description
General part information
PTH08 Series
The PTH08T240/241W is a high-performance 10-A rated, non-isolated power module. These modules represent the 2nd generation of the popular PTH series power modules and include a reduced footprint and additional features. The PTH08T241W is optimized to be used with all ceramic capacitors.
Operating from an input voltage range of 4.5 V to 14 V, the PTH08T240/241W requires a single resistor to set the output voltage to any value over the range, 0.69 V to 5.5 V. The wide input voltage range makes the PTH08T240/241W particularly suitable for advanced computing and server applications that utilize a loosely regulated 8-V to 12-V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5-V, 8-V, or 12-V intermediate bus architectures.
The module incorporates a comprehensive list of features. Output over-current and over-temperature shutdown protects against most load faults. A differential remote sense ensures tight load regulation. An adjustable under-voltage lockout allows the turn-on voltage threshold to be customized. Auto-Tracksequencing is a popular feature that greatly simplifies the simultaneous power-up and power-down of multiple modules in a power system.
