JL04V-2E18-10PE-B-R

Active

JAE Electronics

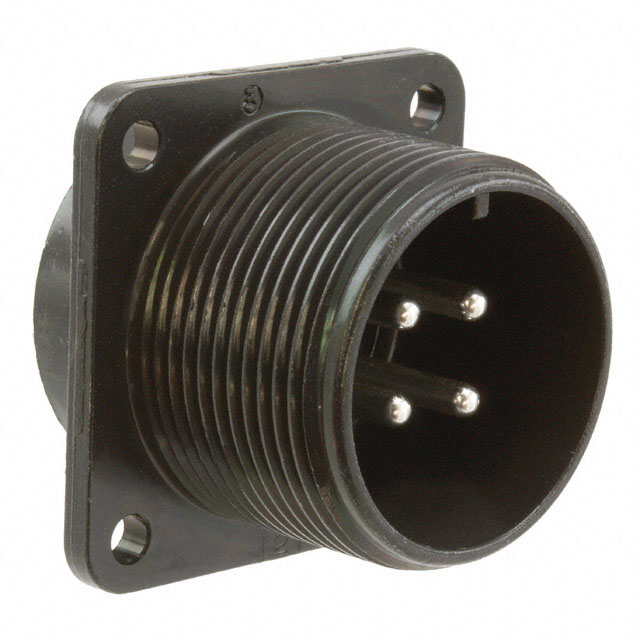

CIRCULAR CONNECTOR, 4 CONTACT(S), ALUMINUM ALLOY, MALE, SOLDER TERMINAL, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Circular Connectors

JL04V-2E18-10PE-B-R

Active

JAE Electronics

CIRCULAR CONNECTOR, 4 CONTACT(S), ALUMINUM ALLOY, MALE, SOLDER TERMINAL, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet Circular Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL04V-2E18-10PE-B-R

Applications	Medical, Industrial, Test Equipment & Measurement, Telecommunications
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	23 A
Features	Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Silicon Rubber
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	18-10

JL04V-2E Series

Part	Color	Current Rating (Amps)	Shell Material	Orientation	Applications	Mounting Feature	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection	Features	Contact Material	Number of Positions	Number of Positions [custom]	Shell Size - Insert	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics JL04V-2E24-11PE-B-R	Black	23 A 46 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber	1.417 in	36 mm	Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	8 9	PE	24-11	Male Pins Receptacle
JAE Electronics JL04V-2E10SL-3PE-B-R	Black	13 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy			10SL-3	Male Pins Receptacle	0.622 in	15.8 mm	2	3	1
JAE Electronics JL04V-2E18-10PE-B-R	Black	23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	4		18-10	Male Pins Receptacle
JAE Electronics JL04V-2E22-J1PE-R	Black	5 A 13 A 23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	17 18		22-J1	Male Pins Receptacle	1.26 in	32 mm
JAE Electronics JL04V-2E20-15PE-B-R	Black	23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy				Male Pins Receptacle	1.165 in	29.6 mm				1	6	15	20
JAE Electronics JL04V-2E32-17PE-B-R	Black	80 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber	1.884 in	47.85 mm	Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	4		32-17	Male Pins Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.78
		10	$ 13.11

Description

General part information

JL04V-2E Series

4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Circular Connectors

Datasheet
