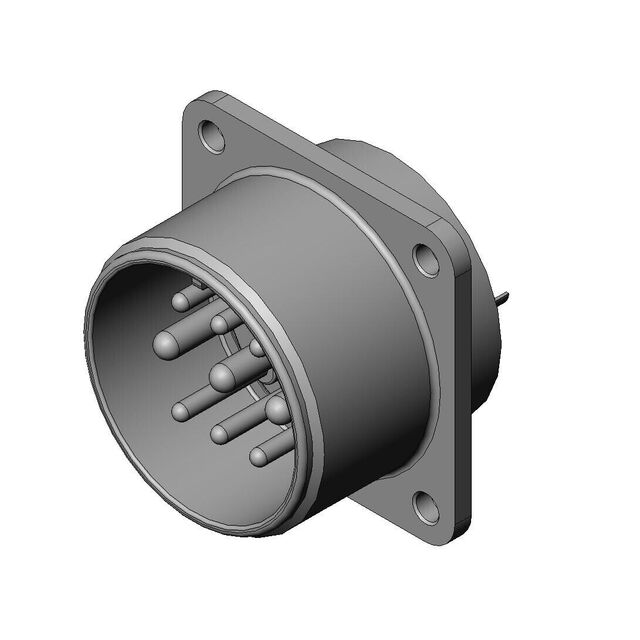

JL04V-2E24-11PE-B-R

Active

JAE Electronics

CONN RCPT MALE 9P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJL04V Series Datasheet Datasheet

JL04V-2E24-11PE-B-R

Active

JAE Electronics

CONN RCPT MALE 9P SILV SLDR CUP

Deep-Dive with AI

DocumentsJL04V Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL04V-2E24-11PE-B-R

Applications	Medical, Industrial, Test Equipment & Measurement, Telecommunications
Cable Opening [custom]	1.417 in
Cable Opening [custom]	36 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 23 A
Features	Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Silicon Rubber
Mounting Feature	Flange
Number of Positions	9, 8
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	24-11

JL04V-2E Series

Part	Color	Current Rating (Amps)	Shell Material	Orientation	Applications	Mounting Feature	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection	Features	Contact Material	Number of Positions	Number of Positions [custom]	Shell Size - Insert	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics JL04V-2E24-11PE-B-R	Black	23 A 46 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber	1.417 in	36 mm	Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	8 9	PE	24-11	Male Pins Receptacle
JAE Electronics JL04V-2E10SL-3PE-B-R	Black	13 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy			10SL-3	Male Pins Receptacle	0.622 in	15.8 mm	2	3	1
JAE Electronics JL04V-2E18-10PE-B-R	Black	23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	4		18-10	Male Pins Receptacle
JAE Electronics JL04V-2E22-J1PE-R	Black	5 A 13 A 23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	17 18		22-J1	Male Pins Receptacle	1.26 in	32 mm
JAE Electronics JL04V-2E20-15PE-B-R	Black	23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy				Male Pins Receptacle	1.165 in	29.6 mm				1	6	15	20
JAE Electronics JL04V-2E32-17PE-B-R	Black	80 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber	1.884 in	47.85 mm	Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	4		32-17	Male Pins Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 37.86
		10	$ 32.18
		25	$ 30.17
		40	$ 30.50
		50	$ 28.73
		80	$ 29.48
		100	$ 27.36
		230	$ 27.85
		250	$ 25.65

Description

General part information

JL04V-2E Series

9 (8 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

JL04V Series Datasheet

Datasheet
