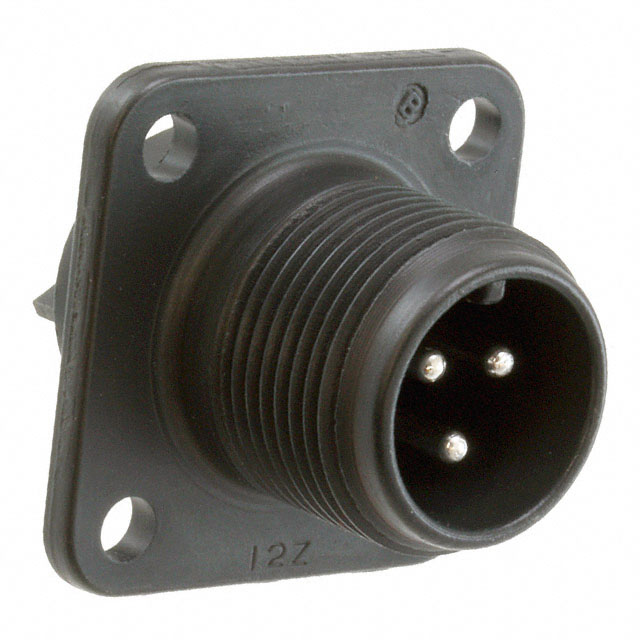

JL04V-2E10SL-3PE-B-R

Active

JAE Electronics

CONN RCPT MALE 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCircular Connectors Datasheet

JL04V-2E10SL-3PE-B-R

Active

JAE Electronics

CONN RCPT MALE 3P SOLDER CUP

Deep-Dive with AI

DocumentsCircular Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL04V-2E10SL-3PE-B-R

Applications	Medical, Industrial, Test Equipment & Measurement, Telecommunications
Cable Opening [diameter]	0.622 in
Cable Opening [diameter]	15.8 mm
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Silicon Rubber
Mounting Feature	Flange
Number of Positions [custom]	2
Number of Positions [custom]	3
Number of Positions [custom]	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-3

JL04V-2E Series

Part	Color	Current Rating (Amps)	Shell Material	Orientation	Applications	Mounting Feature	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection	Features	Contact Material	Number of Positions	Number of Positions [custom]	Shell Size - Insert	Connector Type	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max]	Shell Size - Insert [Min]
JAE Electronics JL04V-2E24-11PE-B-R	Black	23 A 46 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber	1.417 in	36 mm	Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	8 9	PE	24-11	Male Pins Receptacle
JAE Electronics JL04V-2E10SL-3PE-B-R	Black	13 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy			10SL-3	Male Pins Receptacle	0.622 in	15.8 mm	2	3	1
JAE Electronics JL04V-2E18-10PE-B-R	Black	23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	4		18-10	Male Pins Receptacle
JAE Electronics JL04V-2E22-J1PE-R	Black	5 A 13 A 23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	17 18		22-J1	Male Pins Receptacle	1.26 in	32 mm
JAE Electronics JL04V-2E20-15PE-B-R	Black	23 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber			Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy				Male Pins Receptacle	1.165 in	29.6 mm				1	6	15	20
JAE Electronics JL04V-2E32-17PE-B-R	Black	80 A	Aluminum Alloy	N	Industrial Medical Telecommunications Test Equipment & Measurement	Flange	Silicon Rubber	1.884 in	47.85 mm	Zinc	Silver	-55 °C	125 °C	Metal	IP67 - Dust Tight Waterproof	Ground	Copper Alloy	4		32-17	Male Pins Receptacle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.60
		10	$ 12.94
		25	$ 12.44
		50	$ 11.94
		100	$ 11.28
		250	$ 10.29
		500	$ 9.62
		1000	$ 8.83

Description

General part information

JL04V-2E Series

3 (2 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Circular Connectors

Datasheet
