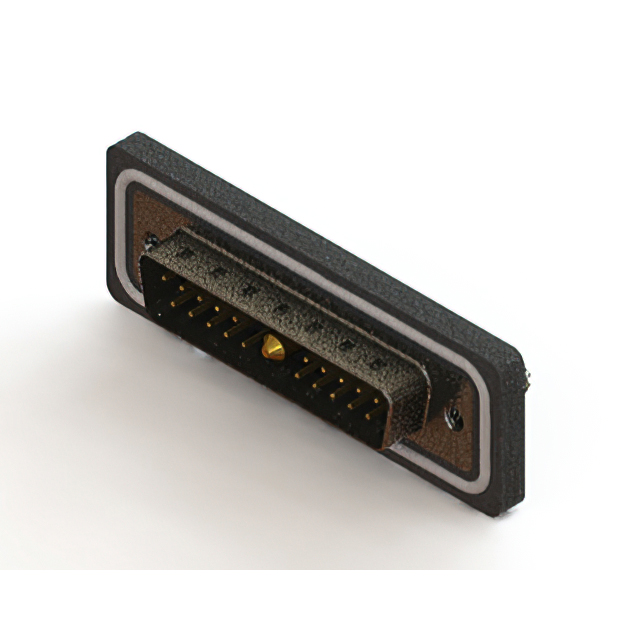

627W21W1224-3ND

Active

EDAC Inc.

CONN D-SUB PLUG 21P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W21W1224-3ND

Active

EDAC Inc.

CONN D-SUB PLUG 21P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W21W1224-3ND

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Board Side (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	20
Number of Positions [custom]	21
Number of Positions [custom]	1
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 21W1
Termination	Solder
Voltage Rating	125 VDC

627W21W Series

Part	Connector Type	Material Flammability Rating	Shell Material, Finish	Voltage Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Shell Size, Connector Layout	Ingress Protection	Features	Mounting Type	Contact Finish	Color	Contact Type	Dielectric Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Termination	Current Rating (Amps)
EDAC Inc. 627W21W1322-4N2	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2	15 µin	0.38 µm	Housing/Shell (4-40)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub	5 A 40 A
EDAC Inc. 627W21W1224-4NA	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2			Housing/Shell (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub	5 A 40 A	Flash	Solder
EDAC Inc. 627W21W1224-1ND	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2			Board Side (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub		Flash	Solder	10A 5A
EDAC Inc. 627W21W1324-2NA	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2	15 µin	0.38 µm	Housing/Shell (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub	5 A 20 A		Solder
EDAC Inc. 627W21W1224-1N5	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2			4-40 Board Side	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub		Flash	Solder	10A 5A
EDAC Inc. 627W21W1224-1NA	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2			Housing/Shell (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub		Flash	Solder	10A 5A
EDAC Inc. 627W21W1224-3ND	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2			Board Side (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Board Lock Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub	5 A 30 A	Flash	Solder
EDAC Inc. 627W21W1124-1NA	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2	5 µin	0.127 µm	Housing/Shell (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub			Solder	10A 5A
EDAC Inc. 627W21W1322-2NA	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2	15 µin	0.38 µm	Housing/Shell (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub	5 A 20 A
EDAC Inc. 627W21W1222-4NA	Male Pins Plug	UL94 V-0	Nickel Plated Steel	125 VDC	20	21	1	2			Housing/Shell (M3)	3 (DB B) - 21W1	IP67 - Dust Tight Waterproof	Grounding Indents Shielded	Panel Mount Through Hole	Gold	Black	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	-25 °C	85 °C	Combo D-Sub	5 A 40 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 15.58

Description

General part information

627W21W Series

21 (20 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
