627W21W1324-2NA

Active

EDAC Inc.

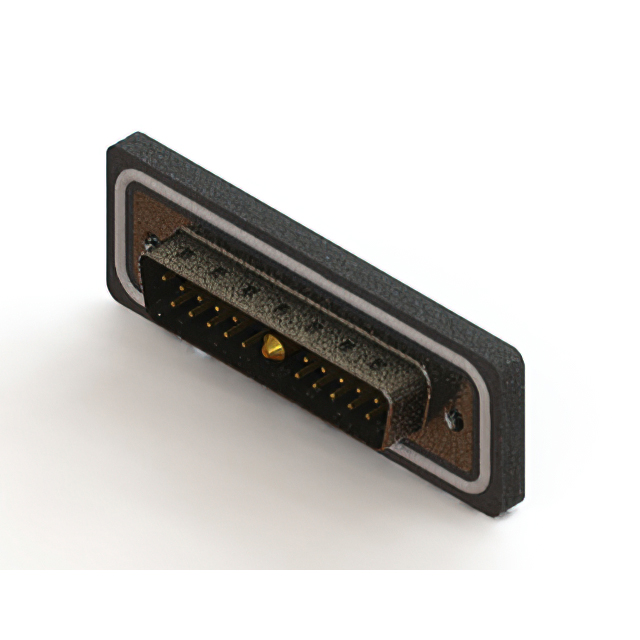

CONN D-SUB PLG 21POS PNL MT SLDR

627W21W1324-2NA

Active

EDAC Inc.

CONN D-SUB PLG 21POS PNL MT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

627W21W Series

21 (20 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627W21W1324-2NA

Color	Black
Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	5A, 20A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions (Normal)	20
Number of Positions (Power)	1
Number of Positions (Total)	21
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	21W1
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125 V

627W21W Series

Part	Flange Feature	Termination	Contact Finish Thickness	Current Rating Options	Contact Type	Shell Size	Part Code	Connector Layout	Number of Positions (Power)	Number of Positions (Total)	Number of Positions (Normal)	Mounting Type	Shell Material	Finish	Connector Style	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Features	Material Flammability Rating	Number of Rows	Contact Finish	Dielectric Material	Voltage Rating	Contact Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 627W21W1322-4N2	Housing Shell (4-40)	Solder Cup	15 µin	40A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C
EDAC Inc. 627W21W1224-4NA	Housing Shell (M3)	Solder	0	40A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W21W1224-1ND	Board Side (M3)	Solder	0	10A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Board Lock Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W21W1324-3ND	Board Side (M3)	Solder	15 µin	30A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Board Lock Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C
EDAC Inc. 627W21W1324-2NA	Housing Shell (M3)	Solder	15 µin	20A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C
EDAC Inc. 627W21W1224-1N5	Board Side (4-40)	Solder	0	10A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Board Lock Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W21W1224-3NA	Housing Shell (M3)	Solder	0	30A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W21W1224-1NA	Housing Shell (M3)	Solder	0	10A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C	Flash	Flash
EDAC Inc. 627W21W1124-4N2	Housing Shell (4-40)	Solder	5 µin	40A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C
EDAC Inc. 627W21W1224-3ND	Board Side (M3)	Solder	0	30A 5A	Power Signal	3	21W1	B DB	1	21	20	Panel Mount Through Hole	Steel	Nickel Plated	Combo D-Sub	Male Pins Plug	Dust Tight Waterproof	IP67	Board Lock Grounding Indents Shielded	UL94 V-0	2	Gold	Glass Filled Polybutylene Terephthalate (PBT)	125 V	Copper Alloy	Black	85 °C	-25 °C	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

627W21W1324-2NA | Datasheet
