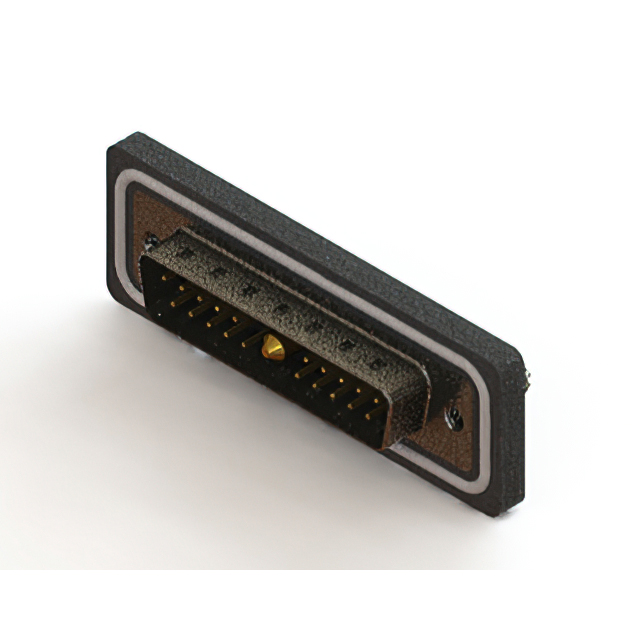

627W21W1224-1ND
ActiveEDAC Inc.
CONN D-SUB PLUG 21P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627W21W1224-1ND
ActiveEDAC Inc.
CONN D-SUB PLUG 21P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627W21W1224-1ND |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5A, 10A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Shielded, Grounding Indents |
| Flange Feature | Board Side (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 20 |
| Number of Positions [custom] | 21 |
| Number of Positions [custom] | 1 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 3 (DB, B) - 21W1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
627W21W Series
| Part | Connector Type | Material Flammability Rating | Shell Material, Finish | Voltage Rating | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Shell Size, Connector Layout | Ingress Protection | Features | Mounting Type | Contact Finish | Color | Contact Type | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Current Rating (Amps) | Contact Finish Thickness | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | 15 µin | 0.38 µm | Housing/Shell (4-40) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | 5 A 40 A | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | Housing/Shell (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | 5 A 40 A | Flash | Solder | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | Board Side (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | Flash | Solder | 10A 5A | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | 15 µin | 0.38 µm | Housing/Shell (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | 5 A 20 A | Solder | ||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | 4-40 Board Side | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | Flash | Solder | 10A 5A | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | Housing/Shell (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | Flash | Solder | 10A 5A | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | Board Side (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Board Lock Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | 5 A 30 A | Flash | Solder | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | 5 µin | 0.127 µm | Housing/Shell (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | Solder | 10A 5A | ||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | 15 µin | 0.38 µm | Housing/Shell (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | 5 A 20 A | |||
EDAC Inc. | Male Pins Plug | UL94 V-0 | Nickel Plated Steel | 125 VDC | 20 | 21 | 1 | 2 | Housing/Shell (M3) | 3 (DB B) - 21W1 | IP67 - Dust Tight Waterproof | Grounding Indents Shielded | Panel Mount Through Hole | Gold | Black | Signal and Power | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -25 °C | 85 °C | Combo D-Sub | 5 A 40 A | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 15.58 | |
Description
General part information
627W21W Series
21 (20 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
