BTE-040-07-F-D-A

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBTE, BSE Series Datasheet Datasheet

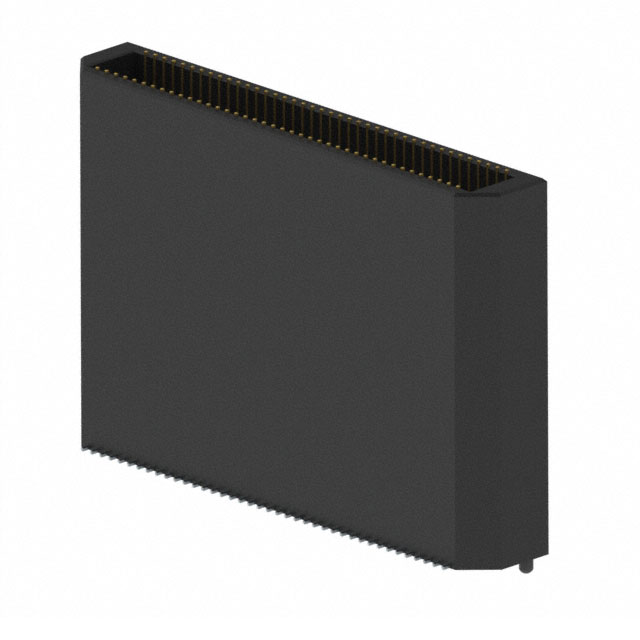

BTE-040-07-F-D-A

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

DocumentsBTE, BSE Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-040-07-F-D-A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Board Guide
Height Above Board	0.954 in
Height Above Board	24.23 mm
Mated Stacking Heights	25 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-040 Series

Part	Mounting Type	Contact Finish	Mated Stacking Heights	Features	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Samtec Inc. BTE-040-09-F-D-A-K-TR	Surface Mount	Gold	14 mm	Board Guide	2	0.8 mm	0.031 in	0.522 in	13.25 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám
Samtec Inc. BTE-040-05-L-D-A-K	Surface Mount	Gold	19.1 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	10 Áin	0.25 Ám	0.719 in	18.26 mm
Samtec Inc. BTE-040-02-H-D-A-K-TR	Surface Mount	Gold		Board Guide	2	0.8 mm	0.031 in	0.278 "	7.06 mm	Header Outer Shroud Contacts	80	30 Áin	0.76 Ám			8.03 mm
Samtec Inc. BTE-040-09-F-D-A-K	Surface Mount	Gold	14 mm	Board Guide	2	0.8 mm	0.031 in	0.522 in	13.25 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám
Samtec Inc. BTE-040-01-L-D-A	Surface Mount	Gold	5.03 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	10 Áin	0.25 Ám
Samtec Inc. BTE-040-06-F-D-A	Surface Mount	Gold	22.02 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	3 Áin	0.076 Ám	0.837 "	21.26 mm
Samtec Inc. BTE-040-02-C-D-A-K-TR	Surface Mount	Gold		Board Guide	2	0.8 mm	0.031 in	0.278 "	7.06 mm	Header Outer Shroud Contacts	80	50 µin	1.27 µm			8.03 mm
Samtec Inc. BTE-040-05-F-D-A	Surface Mount	Gold	19.1 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	3 Áin	0.076 Ám	0.719 in	18.26 mm
Samtec Inc. BTE-040-02-F-D-A-TR	Surface Mount	Gold		Board Guide	2	0.8 mm	0.031 in	0.278 "	7.06 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám			8.03 mm
Samtec Inc. BTE-040-07-F-D-A	Surface Mount	Gold	25 mm	Board Guide	2	0.8 mm	0.031 in	0.954 in	24.23 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	16	$ 13.16

Description

General part information

BTE-040 Series

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

BTE, BSE Series Datasheet

Datasheet
