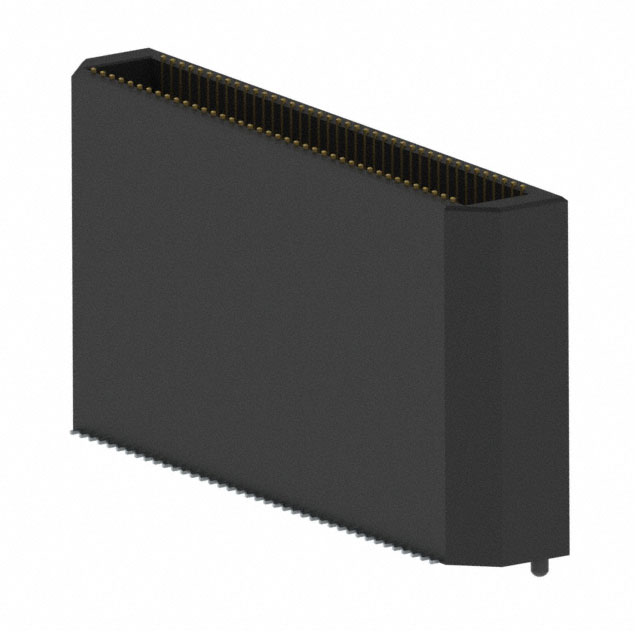

BTE-040-05-L-D-A-K

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BTE, BSE Series Datasheet

BTE-040-05-L-D-A-K

Active

Samtec Inc.

CONN HDR 80POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet BTE, BSE Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTE-040-05-L-D-A-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board [z]	0.719 in
Height Above Board [z]	18.26 mm
Mated Stacking Heights	19.1 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

BTE-040 Series

Part	Mounting Type	Contact Finish	Mated Stacking Heights	Features	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Connector Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]
Samtec Inc. BTE-040-09-F-D-A-K-TR	Surface Mount	Gold	14 mm	Board Guide	2	0.8 mm	0.031 in	0.522 in	13.25 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám
Samtec Inc. BTE-040-05-L-D-A-K	Surface Mount	Gold	19.1 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	10 Áin	0.25 Ám	0.719 in	18.26 mm
Samtec Inc. BTE-040-02-H-D-A-K-TR	Surface Mount	Gold		Board Guide	2	0.8 mm	0.031 in	0.278 "	7.06 mm	Header Outer Shroud Contacts	80	30 Áin	0.76 Ám			8.03 mm
Samtec Inc. BTE-040-09-F-D-A-K	Surface Mount	Gold	14 mm	Board Guide	2	0.8 mm	0.031 in	0.522 in	13.25 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám
Samtec Inc. BTE-040-01-L-D-A	Surface Mount	Gold	5.03 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	10 Áin	0.25 Ám
Samtec Inc. BTE-040-06-F-D-A	Surface Mount	Gold	22.02 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	3 Áin	0.076 Ám	0.837 "	21.26 mm
Samtec Inc. BTE-040-02-C-D-A-K-TR	Surface Mount	Gold		Board Guide	2	0.8 mm	0.031 in	0.278 "	7.06 mm	Header Outer Shroud Contacts	80	50 µin	1.27 µm			8.03 mm
Samtec Inc. BTE-040-05-F-D-A	Surface Mount	Gold	19.1 mm	Board Guide	2	0.8 mm	0.031 in			Header Outer Shroud Contacts	80	3 Áin	0.076 Ám	0.719 in	18.26 mm
Samtec Inc. BTE-040-02-F-D-A-TR	Surface Mount	Gold		Board Guide	2	0.8 mm	0.031 in	0.278 "	7.06 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám			8.03 mm
Samtec Inc. BTE-040-07-F-D-A	Surface Mount	Gold	25 mm	Board Guide	2	0.8 mm	0.031 in	0.954 in	24.23 mm	Header Outer Shroud Contacts	80	3 Áin	0.076 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 14.68

Description

General part information

BTE-040 Series

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
