BTE-040-02-H-D-A-K-TR

Active

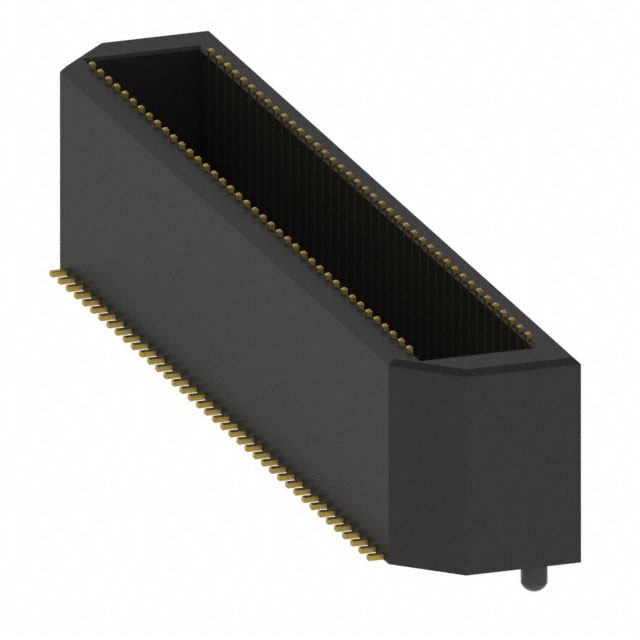

CONN HDR 80POS SMD GOLD

Active

CONN HDR 80POS SMD GOLD

Description

General part information

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Parameters and characteristics for this part

Specification	BTE-040-02-H-D-A-K-TR

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Board Guide
Height Above Board	0.278 in
Mated Stacking Height	8.03 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch	0.031 in

Part	Contact Finish	Mounting Type	Contact Finish Thickness	Height Above Board	Features	Number of Positions	Mated Stacking Height	Pitch	Number of Rows	Connector Type
Samtec Inc. BTE-040-09-F-D-A-K-TR	Gold	Surface Mount	3 µin	0.522 in	Board Guide	80	14 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-05-L-D-A-K	Gold	Surface Mount	10 Ąin	0.719 in	Board Guide	80	19.1 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-02-H-D-A-K-TR	Gold	Surface Mount	30 µin	0.278 in	Board Guide	80	8.03 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-09-F-D-A-K	Gold	Surface Mount	3 µin	0.522 in	Board Guide	80	14 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-01-L-D-A	Gold	Surface Mount	10 Ąin	0.168 in	Board Guide	80	5.03 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-06-F-D-A	Gold	Surface Mount	3 µin	0.837 in	Board Guide	80	22.02 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-02-C-D-A-K-TR	Gold	Surface Mount	50 µin	0.278 in	Board Guide	80	8.03 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-05-F-D-A	Gold	Surface Mount	3 µin	0.719 in	Board Guide	80	19.1 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-02-F-D-A-TR	Gold	Surface Mount	3 µin	0.278 in	Board Guide	80	8.03 mm	0.031 in	2	Header Outer Shroud Contacts
Samtec Inc. BTE-040-01-L-D-A-K	Gold	Surface Mount	10 Ąin	0.16 in	Board Guide	80	5.03 mm	0.031 in	2	Header Outer Shroud Contacts
