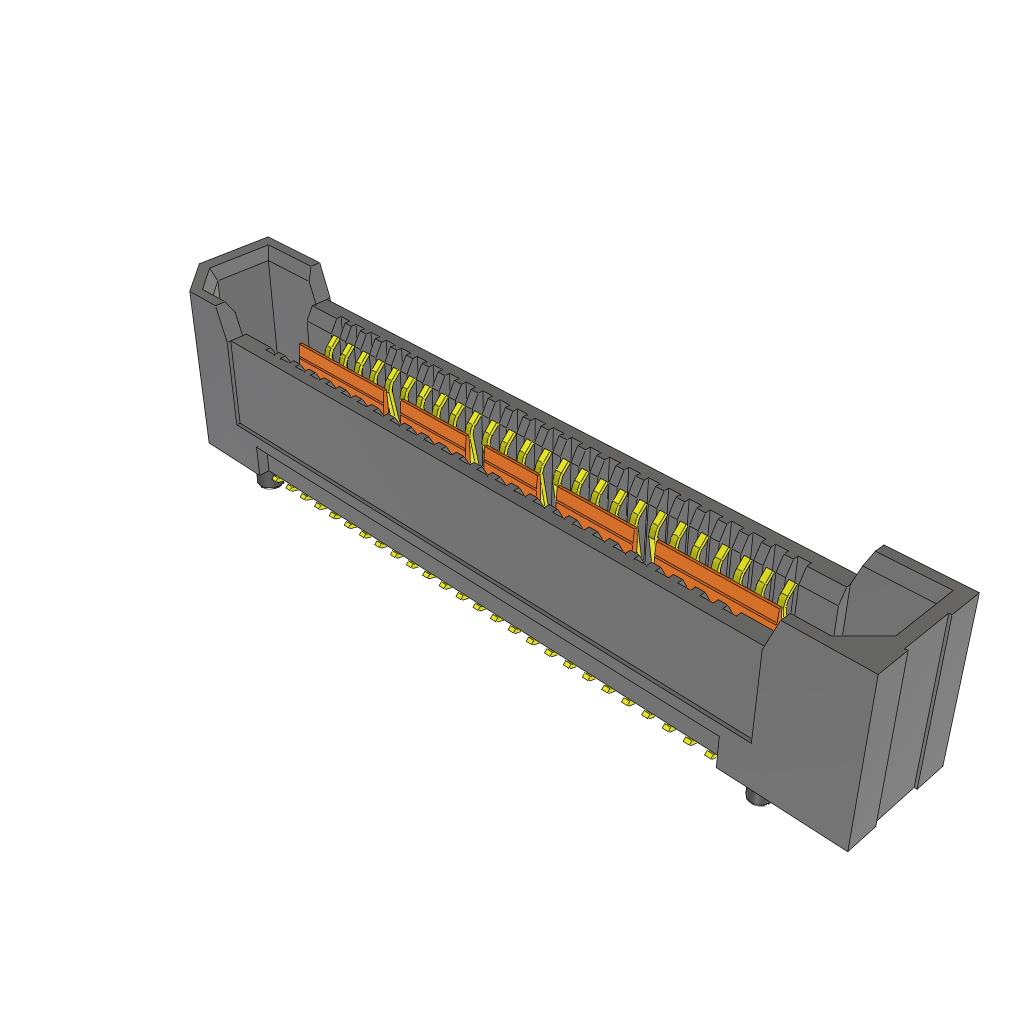

Specification	QRF8-026-05.0-S-D-A-GP

Connector Type	Array, Female Sockets
Contact Finish	Gold
Features	Ground Bus (Plane), Board Guide
Height Above Board	0.197 in
Mated Stacking Height Options	7mm, 10mm, 12mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch	0.031 in

QRF8-026 Series

Part	Mated Stacking Height Options	Height Above Board	Contact Finish Thickness	Connector Type	Pitch	Features	Contact Finish	Number of Positions	Number of Rows	Mounting Type
Samtec Inc. QRF8-026-07.0-L-D-A-K	10mm 12mm 7mm	0.276 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane) Pick and Place	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-05.0-S-D-A-GP	10mm 12mm 7mm	0.197 in		Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane)	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-05.0-L-D-A-TR	10mm 12mm 7mm	0.197 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane)	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-05.0-L-D-A	10mm 12mm 7mm	0.197 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane)	Gold	52	2	Surface Mount

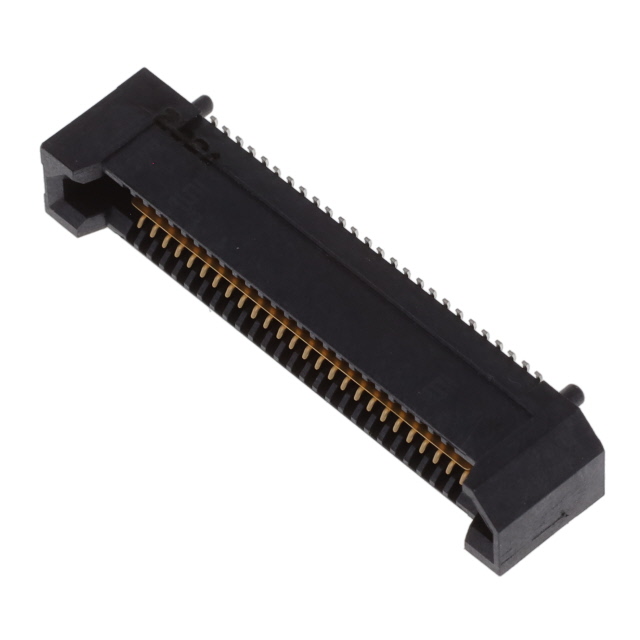

Samtec Inc. QRF8-026-05.0-L-D-A-K	10mm 12mm 7mm	0.197 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane) Pick and Place	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-05.0-L-D-A-GP	10mm 12mm 7mm	0.197 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane)	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-07.0-S-D-A	10mm 12mm 7mm	0.276 in		Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane)	Gold	52	2	Surface Mount

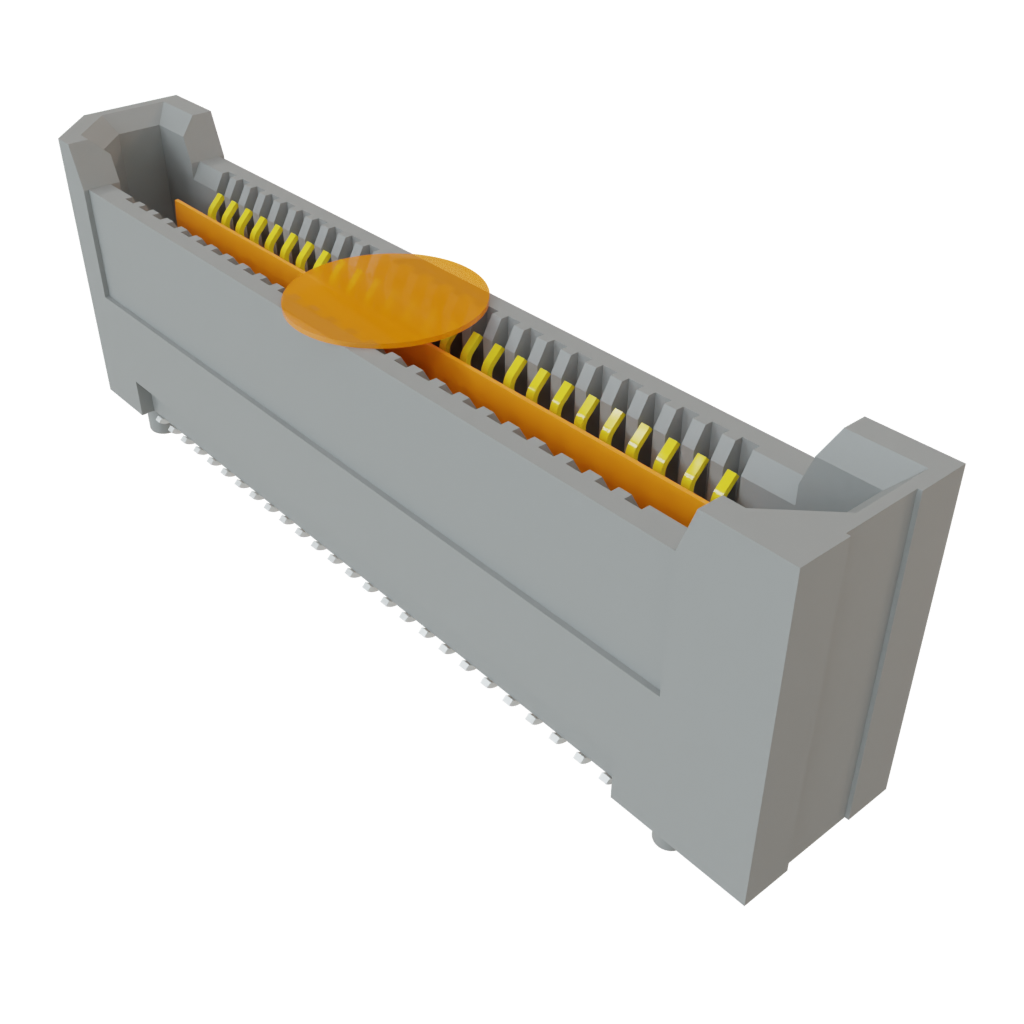

Samtec Inc. QRF8-026-07.0-L-D-A-K-TR	10mm 12mm 7mm	0.276 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane) Pick and Place	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-05.0-L-D-A-K-TR	10mm 12mm 7mm	0.197 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane) Pick and Place	Gold	52	2	Surface Mount
Samtec Inc. QRF8-026-05.0-L-D-A-GP-TR	10mm 12mm 7mm	0.197 in	10 Ąin	Array Female Sockets	0.031 in	Board Guide Ground Bus (Plane)	Gold	52	2	Surface Mount
