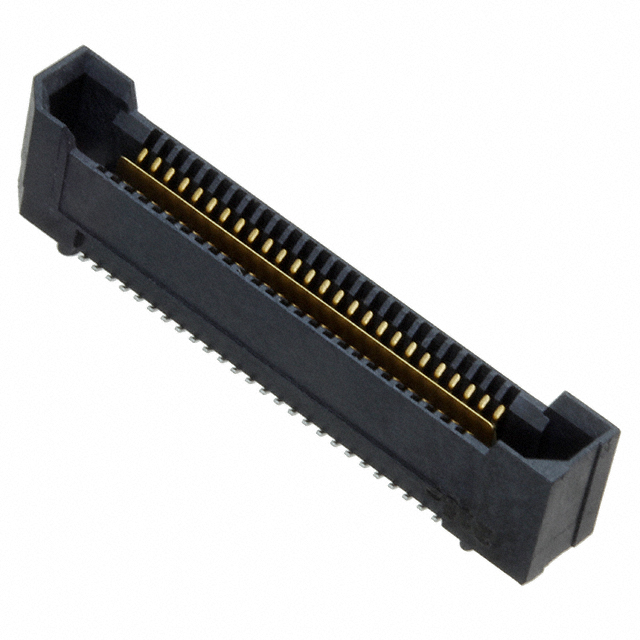

QRF8-026-05.0-L-D-A-GP

Active

Samtec Inc.

CONN ARRAY RCPT 52POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ARRAY RCPT 52POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Mated Stacking Heights	Number of Positions	Height Above Board	Height Above Board	Features	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QRF8-026-07.0-L-D-A-K	Gold	7 mm 10 mm 12 mm	52	0.276 in	7.01 mm	Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets
Samtec Inc. QRF8-026-05.0-L-D-A-TR	Gold	7 mm 10 mm 12 mm	52				2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in
Samtec Inc. QRF8-026-05.0-L-D-A	Gold	7 mm 10 mm 12 mm	52				2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in
Samtec Inc. QRF8-026-05.0-L-D-A-GP	Gold	7 mm 10 mm 12 mm	52				2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in
Samtec Inc. QRF8-026-07.0-L-D-A-K-TR	Gold	7 mm 10 mm 12 mm	52	0.276 in	7.01 mm	Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets
Samtec Inc. QRF8-026-05.0-L-D-A-K-TR	Gold	7 mm 10 mm 12 mm	52			Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

52 Position Connector Array, Female Sockets Surface Mount Gold
