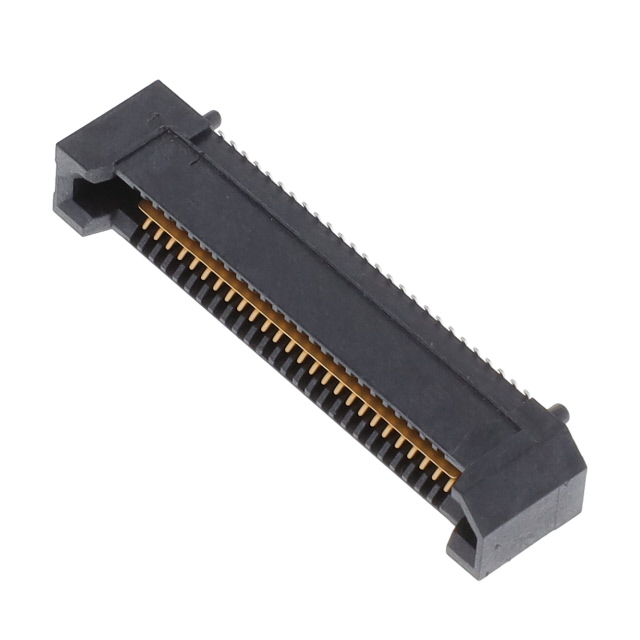

QRF8-026-05.0-L-D-A-K-TR

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Search across all available documentation for this part.

Active

Samtec Inc.

.8MM Q RATE SOCKET WITH EDGE RAT

Technical Specifications

Parameters and characteristics for this part

Specification	QRF8-026-05.0-L-D-A-K-TR

Connector Type	Female Sockets, Array
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Ground Bus (Plane), Pick and Place
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Mated Stacking Heights	12 mm, 7 mm, 10 mm
Mounting Type	Surface Mount
Number of Positions	52
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Mated Stacking Heights	Number of Positions	Height Above Board	Height Above Board	Features	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QRF8-026-07.0-L-D-A-K	Gold	7 mm 10 mm 12 mm	52	0.276 in	7.01 mm	Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets
Samtec Inc. QRF8-026-05.0-L-D-A-TR	Gold	7 mm 10 mm 12 mm	52				2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in
Samtec Inc. QRF8-026-05.0-L-D-A	Gold	7 mm 10 mm 12 mm	52				2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in
Samtec Inc. QRF8-026-05.0-L-D-A-GP	Gold	7 mm 10 mm 12 mm	52				2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in
Samtec Inc. QRF8-026-07.0-L-D-A-K-TR	Gold	7 mm 10 mm 12 mm	52	0.276 in	7.01 mm	Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets
Samtec Inc. QRF8-026-05.0-L-D-A-K-TR	Gold	7 mm 10 mm 12 mm	52			Board Guide Ground Bus (Plane) Pick and Place	2	0.8 mm	0.031 in	Surface Mount	10 Áin	0.25 Ám	Array Female Sockets	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

52 Position Connector Array, Female Sockets Surface Mount Gold
