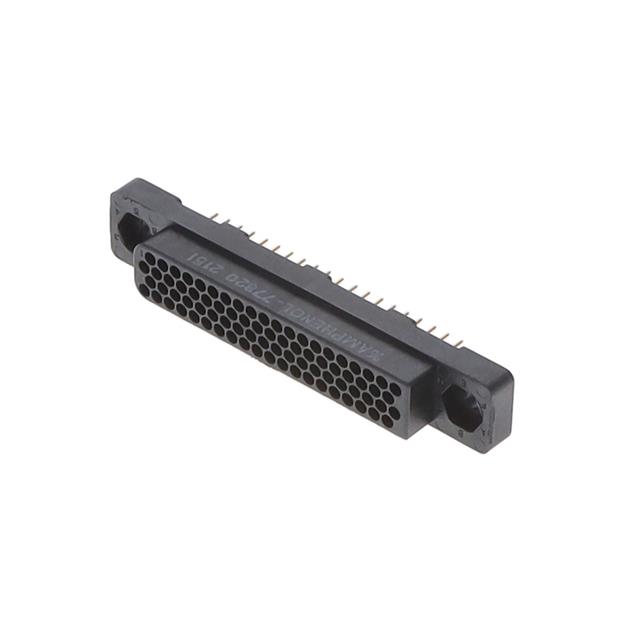

HDB-M4-080M222X

Active

Amphenol Aerospace Operations

MOTHER BOARD 80POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDB-M4-080M222X

Active

Amphenol Aerospace Operations

MOTHER BOARD 80POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-M4-080M222X

Color	Black
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Receptacle, Female Sockets
Connector Usage	Motherboard, Backplane
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	2 A
Features	Jackscrew
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.07 in
Pitch [x]	1.78 mm
Termination	Solder

HDB-M4 Series

Part	Color	Number of Positions	Mounting Type	Termination	Connector Type	Features	Current Rating (Amps)	Connector Style	Connector Usage	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish	Number of Columns	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]
Amphenol Aerospace Operations HDB-M4-080M222X	Black	80	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Gold	10	0.76 Ám	30 Áin	8	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-060M242X	Black	60	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Gold	10	0.76 Ám	30 Áin	6	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-120M232X	Black	120	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Gold	10	0.76 Ám	30 Áin	12	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-080M242X	Black	80	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Gold	10	0.76 Ám	30 Áin	8	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-120M246X	Black	120	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Tin-Lead	10	2.54 µm	100 µin	12	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-060M222X	Black	60	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Gold	10	0.76 Ám	30 Áin	6	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-080M232X	Black	80	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Gold	10	0.76 Ám	30 Áin	8	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-080M246X	Black	80	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Tin-Lead	10	2.54 µm	100 µin	8	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-060M246X	Black	60	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Tin-Lead	10	2.54 µm	100 µin	6	0.07 in	1.78 mm
Amphenol Aerospace Operations HDB-M4-120M226X	Black	120	Through Hole	Solder	Receptacle Female Sockets	Jackscrew	2 A	High Density (HDC HDI HPC)	Backplane Motherboard	125 °C	-65 ░C	All	Tin-Lead	10	2.54 µm	100 µin	12	0.07 in	1.78 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 247.42
		10	$ 180.84

Description

General part information

HDB-M4 Series

80 Connector Receptacle, Female Sockets Through Hole Black High Density (HDC, HDI, HPC)
