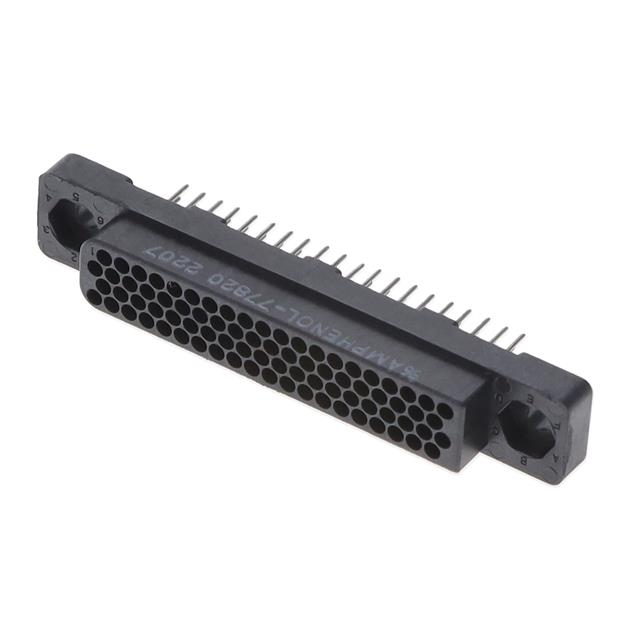

Specification	HDB-M4-080M246X

Color	Black
Connector Style	High Density (HDC, HDI, HPC)
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane, Motherboard
Contact Finish	Tin-Lead
Contact Finish Thickness	100 µin
Current Rating	2 A
Features	Jackscrew
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Pitch	0.07 in
Termination	Solder

HDB-M4 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Mounting Type	Number of Columns	Number of Positions	Contact Finish Thickness	Number of Rows	Features	Color	Connector Type	Number of Positions Loaded	Termination	Connector Style	Pitch	Connector Usage	Contact Finish
Amphenol Aerospace Operations HDB-M4-080M222X	125 °C	-65 °C	2 A	Through Hole	10	80	30 µin	8	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-060M242X	125 °C	-65 °C	2 A	Through Hole	10	60	30 µin	6	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-120M232X	125 °C	-65 °C	2 A	Through Hole	10	120	30 µin	12	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-080M242X	125 °C	-65 °C	2 A	Through Hole	10	80	30 µin	8	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-120M246X	125 °C	-65 °C	2 A	Through Hole	10	120	100 µin	12	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Tin-Lead
Amphenol Aerospace Operations HDB-M4-060M222X	125 °C	-65 °C	2 A	Through Hole	10	60	30 µin	6	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-080M232X	125 °C	-65 °C	2 A	Through Hole	10	80	30 µin	8	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-120M242X	125 °C	-65 °C	2 A	Through Hole	10	120	30 µin	12	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Gold
Amphenol Aerospace Operations HDB-M4-080M246X	125 °C	-65 °C	2 A	Through Hole	10	80	100 µin	8	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Tin-Lead
Amphenol Aerospace Operations HDB-M4-060M246X	125 °C	-65 °C	2 A	Through Hole	10	60	100 µin	6	Jackscrew	Black	Female Sockets Receptacle	All	Solder	High Density (HDC HDI HPC)	0.07 in	Backplane Motherboard	Tin-Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HDB-M4-080M246X | Datasheet
