Technical Specifications
Parameters and characteristics for this part

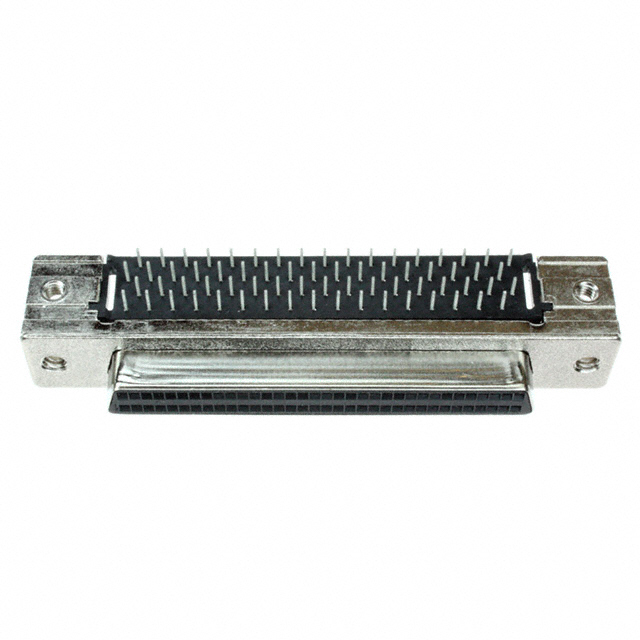

| Specification | 5787169-7 |
|---|---|
| Backset Spacing | 3.71 mm |
| Backset Spacing | 0.146 in |
| Color | Black |
| Connector Style | D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Dielectric Material | Thermoplastic |
| Features | Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [x] | 0.05 |
| Shell Size, Connector Layout [y] | 0.1 |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.00 | |
| 16 | $ 8.71 | |||
| 32 | $ 8.48 | |||
| 56 | $ 8.25 | |||
| 104 | $ 7.75 | |||
| 256 | $ 7.70 | |||
| 504 | $ 7.25 | |||
| 1000 | $ 6.47 | |||
Description
General part information
AMPLIMITE 0.50 Series Series
D-Sub Standard Connectors RA SHLD RECP HDR 50P
