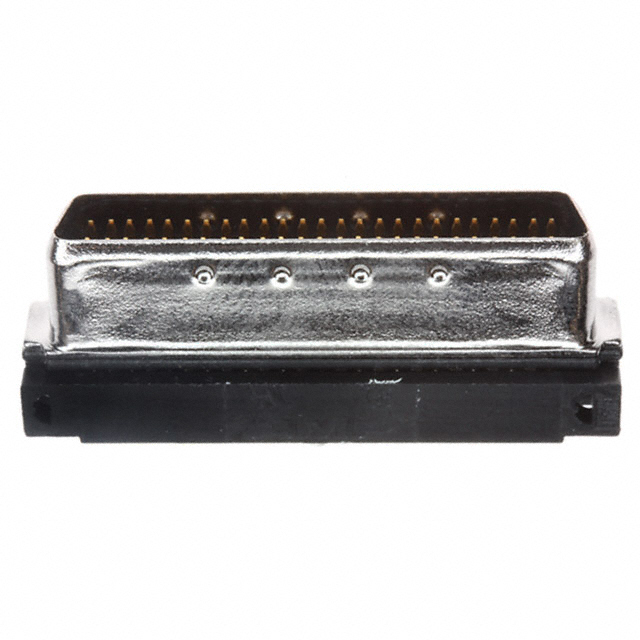

CONN D-TYPE PLUG 50POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

5749111-4

Active

TE Connectivity Raychem Cable Protection

CONN D-TYPE PLUG 50POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5749111-4

Color	Black
Connector Style	D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Shielded
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	IDC, Ribbon Cable
Voltage Rating	30 VDC

AMPLIMITE 0.50 Series Series

D-Sub Standard Connectors RA SHLD RECP HDR 50P

...

Part	Termination	Connector Type	Connector Style	Mounting Type	Number of Positions	Dielectric Material	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Voltage Rating	Color	Contact Type	Number of Rows	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Material Flammability Rating	Flange Feature	Backset Spacing	Backset Spacing	Shell Material, Finish	Features
TE Connectivity Raychem Cable Protection 5175710-5	Kinked Pin	Female Sockets Plug	Board to Board D-Type	Through Hole	20	Thermoplastic	8 çin	0.203 çm	Copper Alloy	100 V	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0
TE Connectivity Raychem Cable Protection 5173280-1	Solder	Cap Male Pins	Board to Board D-Type	Through Hole	30	Thermoplastic	8 çin	0.203 çm	Copper Alloy	100 V	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (Unthreaded)
TE Connectivity Raychem Cable Protection 5787082-5	Solder	Receptacle Female Sockets	D-Type	Board Edge Right Angle Through Hole	50	Thermoplastic			Phosphor Bronze	30 VDC	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (2-56) Latchblocks	3.71 mm	0.146 in	Nickel Plated Steel	Board Lock Shielded
TE Connectivity Raychem Cable Protection 5787169-7	Solder	Receptacle Female Sockets	D-Type	Board Edge Right Angle Through Hole	68	Thermoplastic			Phosphor Bronze	30 VDC	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (4-40)	3.71 mm	0.146 in	Nickel Plated Steel	Shielded
TE Connectivity Raychem Cable Protection 5749111-4	IDC Ribbon Cable	Male Pins Plug	D-Type	Free Hanging (In-Line)	50	Thermoplastic			Phosphor Bronze	30 VDC	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0				Steel Tin-Nickel Plated	Shielded
TE Connectivity Raychem Cable Protection 787362-9	Solder	Receptacle Female Sockets	D-Type	Board Edge Right Angle Through Hole	100	Thermoplastic			Phosphor Bronze	30 VDC	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (4-40)	3.71 mm	0.146 in	Nickel Plated Steel	Board Lock Shielded
TE Connectivity Raychem Cable Protection 6-5173280-4	Solder	Cap Male Pins	Board to Board D-Type	Through Hole	60	Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	100 V	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (Unthreaded)
TE Connectivity Raychem Cable Protection 6-5173280-1	Solder	Cap Male Pins	Board to Board D-Type	Through Hole	30	Thermoplastic	30 Áin	0.76 Ám	Copper Alloy	100 V	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (Unthreaded)
TE Connectivity Raychem Cable Protection 5786555-7	Press-Fit	Receptacle Female Sockets	D-Type	Through Hole	68	Polyphthalamide (PPA)			Phosphor Bronze	30 VDC	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (4-40)			Nickel Plated Steel	Shielded
TE Connectivity Raychem Cable Protection 5787190-7	Solder	Receptacle Female Sockets	D-Type	Board Edge Right Angle Through Hole	68	Thermoplastic			Phosphor Bronze	30 VDC	Black	Signal	2	Gold	105 ░C	-55 °C	0.05	0.1	UL94 V-0	Housing/Shell (2-56) Latchblocks Rails	3.71 mm	0.146 in	Nickel Plated Steel	Shielded
