WNSC6D20650B6J

Active

WeEn Semiconductors

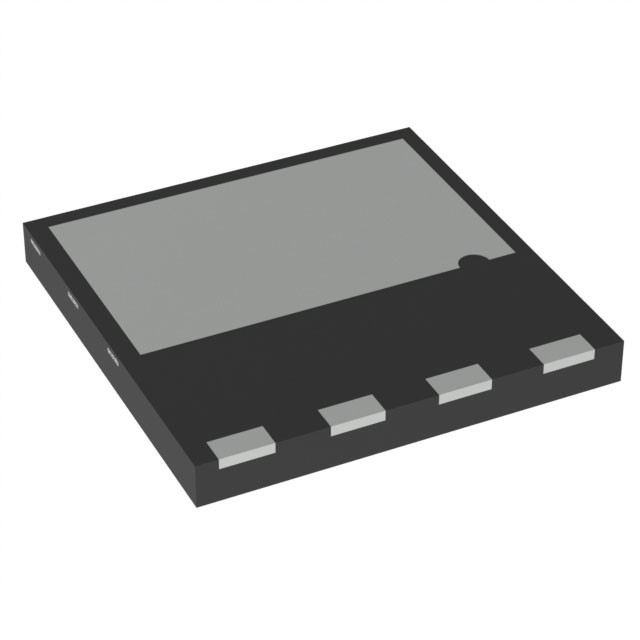

DIODE SIL CARBIDE 650V 20A D2PAK

Search across all available documentation for this part.

Active

WeEn Semiconductors

DIODE SIL CARBIDE 650V 20A D2PAK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	WNSC6D20650B6J	WNSC6 Series

Capacitance @ Vr, F	780 pF	130 - 780 pF
Current - Average Rectified (Io)	-	1 - 16 A
Current - Average Rectified (Io) (per Diode)	-	20 A
Current - Reverse Leakage @ Vr	80 µA	20 - 80 µA
Diode Configuration	-	1 Pair Common Cathode
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature - Junction	175 °C	175 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3	SMB, DO-214AA, D2PAK (2 Leads + Tab), TO-263AB, TO-263-3, TO-247-3, TO-220-2
Reverse Recovery Time (trr)	0 ns	0 ns
Speed	No Recovery Time	No Recovery Time
Supplier Device Package	D2PAK	SMB, D2PAK, TO-247-3, TO-220AC
Technology	SiC (Silicon Carbide) Schottky	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V	650 V
Voltage - Forward (Vf) (Max) @ If	1.55 V	1.4 - 1.55 V

DIODE SIL CARBIDE 650V 1A SMB

Part	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Average Rectified (Io)	Package / Case	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Diode Configuration	Current - Average Rectified (Io) (per Diode)
WeEn Semiconductors WNSC6D01650MBJ	175 °C	650 V	SiC (Silicon Carbide) Schottky	1 A	DO-214AA, SMB	No Recovery Time	Surface Mount	1.4 V	SMB	130 pF	20 µA
WeEn Semiconductors WNSC6D20650B6J	175 °C	650 V	SiC (Silicon Carbide) Schottky		D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	No Recovery Time	Surface Mount	1.55 V	D2PAK	780 pF	80 µA
WeEn Semiconductors WNSC6D20650CW6Q	175 °C	650 V	SiC (Silicon Carbide) Schottky		TO-247-3	No Recovery Time	Through Hole	1.45 V	TO-247-3		50 µA	1 Pair Common Cathode	20 A
WeEn Semiconductors WNSC6D166506Q	175 °C	650 V	SiC (Silicon Carbide) Schottky	16 A	TO-220-2	No Recovery Time	Through Hole	1.45 V	TO-220AC	780 pF	80 µA
WeEn Semiconductors WNSC6D16650B6J	175 °C	650 V	SiC (Silicon Carbide) Schottky	16 A	D2PAK (2 Leads + Tab), TO-263-3, TO-263AB	No Recovery Time	Surface Mount	1.45 V	D2PAK	780 pF	80 µA
WeEn Semiconductors WNSC6D04650Q	175 °C	650 V	SiC (Silicon Carbide) Schottky	4 A	TO-220-2	No Recovery Time	Through Hole	1.4 V	TO-220AC	233 pF	30 µA
WeEn Semiconductors WNSC6D16650CW6Q	175 °C	650 V	SiC (Silicon Carbide) Schottky	16 A	TO-247-3	No Recovery Time	Through Hole	1.45 V	TO-247-3	780 pF	80 µA
