CDCE906-706PROGEVM

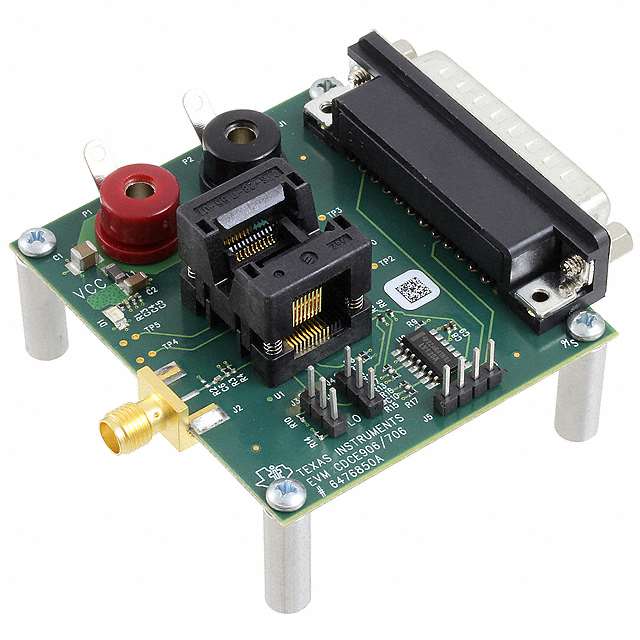

ActiveEVAL MOD PROGRAMABLE CDCE906/706
Deep-Dive with AI
Search across all available documentation for this part.
CDCE906-706PROGEVM
ActiveEVAL MOD PROGRAMABLE CDCE906/706
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CDCE906-706PROGEVM | CDCE906 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Differential - Input:Output | - | Yes/No |
| For Use With/Related Products | CDCE706, CDCE906 | CDCE706, CDCE906 |
| Frequency - Max | - | 167 MHz |
| Function | - | Clock Generator |
| Input | - | LVCMOS, Crystal |
| Mounting Type | - | Surface Mount |
| Number of Circuits | - | 1 |
| Operating Temperature | - | 70 ░C |
| Operating Temperature | - | 0 °C |
| Output | - | LVCMOS |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 20-TSSOP |
| PLL | - | Yes with Bypass |
| Ratio - Input:Output | - | 6 |
| Ratio - Input:Output | - | 1 |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | - | 20-TSSOP |
| Type | Programmer | Programmer, Timing |
| Utilized IC / Part | - | CDCE706, CDCE906 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 178.80 | |
CDCE906 Series
167-MHz, LVCMOS, programmable 3-PLL clock synthesizer / multiplier / divider
| Part | Input | Operating Temperature [Max] | Operating Temperature [Min] | Differential - Input:Output | Package / Case | Package / Case | Package / Case | Number of Circuits | Ratio - Input:Output [custom] | Ratio - Input:Output [custom] | PLL | Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Supplier Device Package | Frequency - Max [Max] | For Use With/Related Products | Type | Contents | Function | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments CDCE906PWR | Crystal, LVCMOS | 70 ░C | 0 °C | Yes/No | 0.173 in | 4.4 mm | 20-TSSOP | 1 | 6 | 1 | Yes with Bypass | LVCMOS | 3.6 V | 3 V | Surface Mount | 20-TSSOP | 167 MHz | ||||||
Texas Instruments CDCE906-706PROGEVM | CDCE706, CDCE906 | Programmer | Board(s) | ||||||||||||||||||||
Texas Instruments CDCE906-706PERFEVM | Timing | Clock Generator | Board(s) | CDCE706, CDCE906 |
Description
General part information
CDCE906 Series
The CDCE906 is one of the smallest and powerful PLL synthesizer / multiplier / divider available today. Despite its small physical outlines, the CDCE906 is flexible. It has the capability to produce an almost independent output frequency from a given input frequency.
The input frequency can be derived from a LVCMOS, differential input clock, or a single crystal. The appropriate input waveform can be selected via the SMBus data interface controller.
To achieve an independent output frequency the reference divider M and the feedback divider N for each PLL can be set to values from 1 up to 511 for the M-Divider and from 1 up to 4095 for the N-Divider. The PLL-VCO (voltage controlled oscillator) frequency than is routed to the free programmable output switching matrix to any of the six outputs. The switching matrix includes an additional 7-bit post-divider (1-to-127) and an inverting logic for each output.
