622-037-360-033
ActiveEDAC Inc.
EDAC STANDARD RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
622-037-360-033
ActiveEDAC Inc.
EDAC STANDARD RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 622-037-360-033 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Mounting Brackets, Shielded, Board Lock |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
622-037 Series
...
| Part | Number of Rows | Contact Type | Shell Material, Finish | Material Flammability Rating | Contact Finish | Termination | Contact Finish Thickness | Color | Contact Material | Features | Dielectric Material | Backset Spacing | Backset Spacing | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Current Rating (Amps) | Number of Positions | Connector Style | Mounting Type | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Flash | Black | Copper Alloy | Board Lock Filter Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Housing/Shell (M3) | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | ||
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Filter Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Housing/Shell (Unthreaded) | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 15 µin | 0.38 µm | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Filter Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Female Screwlock (4-40) Mating Side | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 30 Áin | 0.76 Ám | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Board Lock Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Female Screwlock (4-40) Mating Side | 125 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 30 Áin | 0.76 Ám | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Female Screwlock (M3) Mating Side | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 30 Áin | 0.76 Ám | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Board Lock Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Female Screwlock (4-40) Mating Side | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 15 µin | 0.38 µm | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Board Lock Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Housing/Shell (4-40) | 125 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 15 µin | 0.38 µm | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Filter Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Housing/Shell (M3) | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 15 µin | 0.38 µm | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Housing/Shell (M3) | 125 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 30 Áin | 0.76 Ám | |
EDAC Inc. | 2 | Signal | Nickel Plated Steel | UL94 V-0 | Gold | Solder | Black | Copper Alloy | Board Lock Filter Mounting Brackets Shielded | Polyester Thermoplastic | 8.08 mm | 0.318 " | Housing/Shell (M3) | 85 °C | -55 °C | Receptacle Female Sockets | 3 A | 37 | D-Sub | Board Edge Right Angle Through Hole | 4 (DC C) | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
622-037 Series

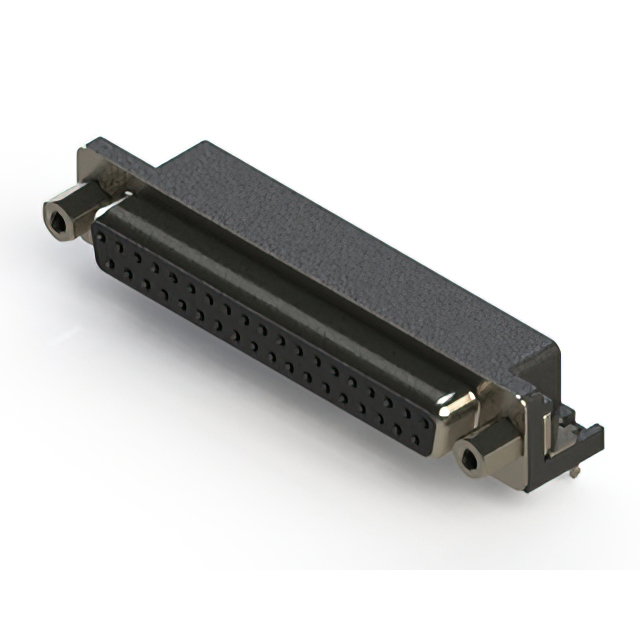

37 Position D-Sub Receptacle, Female Sockets Connector
