Description

General part information

622-037 Series

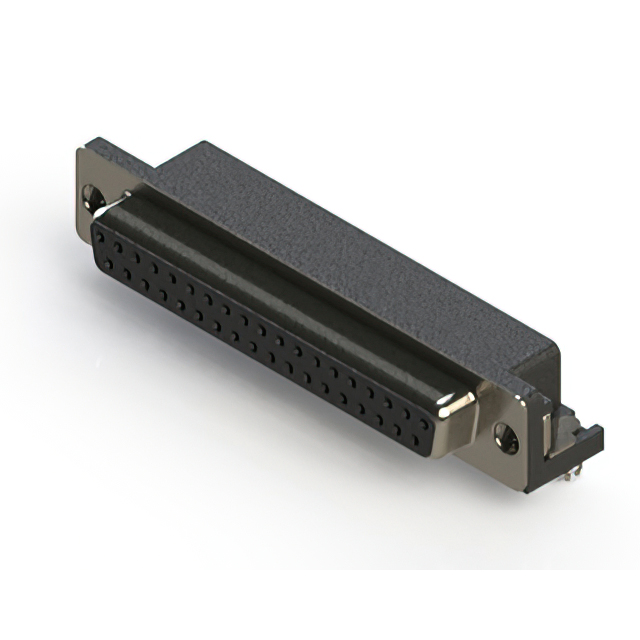

37 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	622-037-268-045

Backset Spacing	0.318 in
Color	Black
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Filter, Mounting Brackets, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder

622-037 Series

...

Part	Connector Type	Number of Positions	Contact Finish	Number of Rows	Mounting Type	Termination	Shell Material	Finish	Backset Spacing	Material Flammability Rating	Connector Style	Contact Type	Shell Size	Connector Layout	Features	Contact Finish Thickness	Flange Feature	Current Rating (Per Contact)	Color	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 622-037-368-010	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Filter Mounting Brackets Shielded	15 µin	Mating Side (4-40)	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-268-045	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Board Lock Filter Mounting Brackets Shielded	0	Housing Shell (M3)	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy	Flash	Flash
EDAC Inc. 622-037-368-011	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Filter Mounting Brackets Shielded	15 µin	Housing Shell (Unthreaded)	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-668-013	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Filter Mounting Brackets Shielded	30 µin	Female Screwlock (4-40) Mating Side	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-368-512	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Filter Mounting Brackets Shielded	15 µin	Housing Shell (4-40)	3 A	Black	-55 °C	125 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-360-543	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Board Lock Mounting Brackets Shielded	15 µin	Female Screwlock (4-40) Mating Side	3 A	Black	-55 °C	125 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-668-011	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Filter Mounting Brackets Shielded	30 µin	Housing Shell (Unthreaded)	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-660-533	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Board Lock Mounting Brackets Shielded	30 µin	Female Screwlock (4-40) Mating Side	3 A	Black	-55 °C	125 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-660-056	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Mounting Brackets Shielded	30 µin	Female Screwlock (M3) Mating Side	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy
EDAC Inc. 622-037-360-033	Female Sockets Receptacle	37 pos	Gold	2	Board Edge Right Angle Through Hole	Solder	Steel	Nickel Plated	0.318 in	UL94 V-0	D-Sub	Signal	4	C DC	Board Lock Mounting Brackets Shielded	15 µin	Female Screwlock (4-40) Mating Side	3 A	Black	-55 °C	85 °C	Polyester Thermoplastic	Copper Alloy
