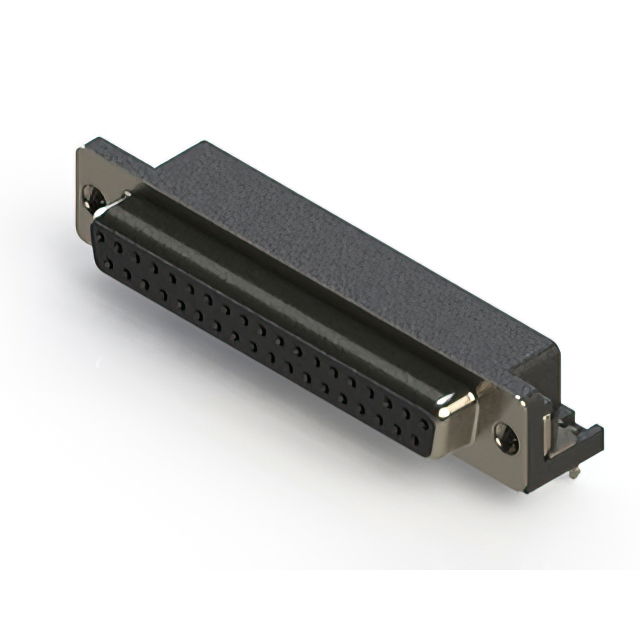

622-037-368-035

Active

EDAC Inc.

CONN D-SUB RCPT 37POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

622-037-368-035

Active

EDAC Inc.

CONN D-SUB RCPT 37POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-037-368-035

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Mounting Brackets, Filter
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

622-037 Series

...

Part	Number of Rows	Contact Type	Shell Material, Finish	Material Flammability Rating	Contact Finish	Termination	Contact Finish Thickness	Color	Contact Material	Features	Dielectric Material	Backset Spacing	Backset Spacing	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Current Rating (Amps)	Number of Positions	Connector Style	Mounting Type	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 622-037-268-045	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder	Flash	Black	Copper Alloy	Board Lock Filter Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Housing/Shell (M3)	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)
EDAC Inc. 622-037-368-011	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Filter Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Housing/Shell (Unthreaded)	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 622-037-668-013	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Filter Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Female Screwlock (4-40) Mating Side	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 622-037-660-533	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Female Screwlock (4-40) Mating Side	125 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 622-037-660-056	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Female Screwlock (M3) Mating Side	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 622-037-360-033	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Female Screwlock (4-40) Mating Side	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 622-037-360-532	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Board Lock Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Housing/Shell (4-40)	125 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 622-037-368-055	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Filter Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Housing/Shell (M3)	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 622-037-660-515	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Housing/Shell (M3)	125 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 622-037-368-035	2	Signal	Nickel Plated Steel	UL94 V-0	Gold	Solder		Black	Copper Alloy	Board Lock Filter Mounting Brackets Shielded	Polyester Thermoplastic	8.08 mm	0.318 "	Housing/Shell (M3)	85 °C	-55 °C	Receptacle Female Sockets	3 A	37	D-Sub	Board Edge Right Angle Through Hole	4 (DC C)	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 6.36

Description

General part information

622-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector
