S25HS512TFANHB013

Active

Infineon Technologies

IC FLASH 512MBIT SPI/QUAD 8WSON

Deep-Dive with AI

Search across all available documentation for this part.

S25HS512TFANHB013

Active

Infineon Technologies

IC FLASH 512MBIT SPI/QUAD 8WSON

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S25HS512TFANHB013

Clock Frequency	166 MHz
Memory Format	FLASH
Memory Interface	Quad I/O, QPI, SPI
Memory Organization	64 M
Memory Size	64 MB
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

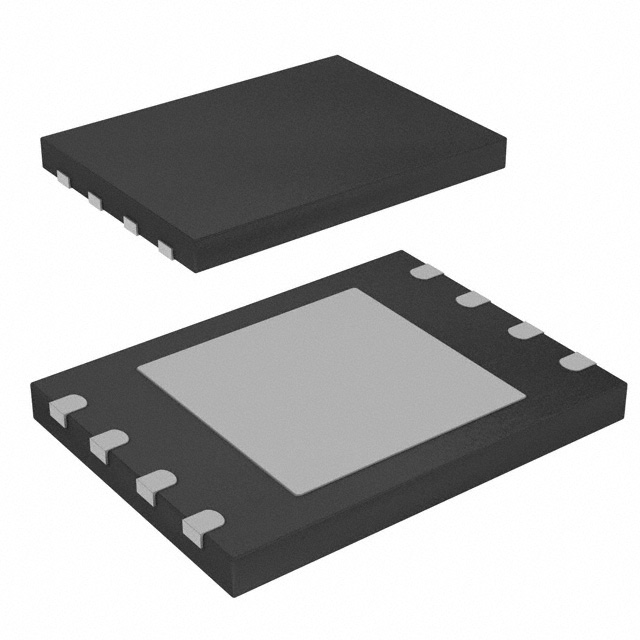

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WSON (6x8)
Technology	FLASH - NOR (SLC)
Voltage - Supply [Max]	2 V
Voltage - Supply [Min]	1.7 V

S25HS512 Series

Part	Memory Format	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Memory Organization	Memory Size	Memory Type	Memory Interface	Package / Case [x]	Package / Case	Package / Case [y]	Clock Frequency
Infineon Technologies S25HS512TDPMHV010	FLASH	1.7 V	2 V	Surface Mount	16-SOIC	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	133 MHz
Infineon Technologies S25HS512TFANHV013	FLASH	1.7 V	2 V	Surface Mount	8-WSON (6x8)	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI		8-WDFN Exposed Pad		166 MHz
Infineon Technologies S25HS512TDPMHM013	FLASH	1.7 V	2 V	Surface Mount	16-SOIC	FLASH - NOR (SLC)	125 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	133 MHz
Infineon Technologies S25HS512TFAMHB013	FLASH	1.7 V	2 V	Surface Mount	16-SOIC	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	166 MHz
Infineon Technologies S25HS512TFANHV010	FLASH	1.7 V	2 V	Surface Mount	8-WSON (6x8)	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI		8-WDFN Exposed Pad		166 MHz
Infineon Technologies S25HS512TFANHB013	FLASH	1.7 V	2 V	Surface Mount	8-WSON (6x8)	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI		8-WDFN Exposed Pad		166 MHz
Infineon Technologies S25HS512TFAMHM010	FLASH	1.7 V	2 V	Surface Mount	16-SOIC	FLASH - NOR (SLC)	125 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	166 MHz
Infineon Technologies S25HS512TFAMHV013	FLASH	1.7 V	2 V	Surface Mount	16-SOIC	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	166 MHz
Infineon Technologies S25HS512TDPNHM013	FLASH	1.7 V	2 V	Surface Mount	8-WSON (6x8)	FLASH - NOR (SLC)	125 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI		8-WDFN Exposed Pad		133 MHz
Infineon Technologies S25HS512TFAMHB010	FLASH	1.7 V	2 V	Surface Mount	16-SOIC	FLASH - NOR (SLC)	105 °C	-40 °C	64 M	64 MB	Non-Volatile	QPI Quad I/O SPI	0.295 in	16-SOIC	7.5 mm	166 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 9.85

Description

General part information

S25HS512 Series

The S25HS512TFANHB013 is a SEMPER™ NOR Flash memory. It is automotive qualified and offers an impressive 512 Mbit density. This device interfaces using Quad SPI with a maximum 102 MByte/s bandwidth and operates at 1.8 V. Interface frequencies for Single-Data-Rate (SDR) and Double-Data-Rate (DDR) are 166 MHz and 102 MHz respectively. Packaged in PG-WSON-8, it adheres to the ISO 26262-compliant classification, providing exceptional reliability.

Documents

Technical documentation and resources

No documents available
