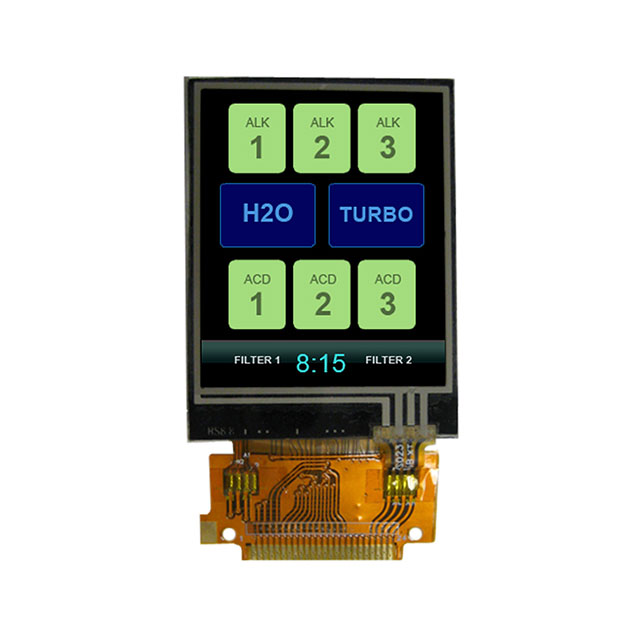

NHD-1.8-128160EF-CTXI#-T

Active

Newhaven Display Intl

DISPLAY LCD TFT TOUCH 24PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

NHD-1.8-128160EF-CTXI#-T

Active

Newhaven Display Intl

DISPLAY LCD TFT TOUCH 24PIN

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure LCD Solvent Precautions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-1.8-128160EF-CTXI#-T

Backlight	LED - White
Controller Type	ILI9163C
Diagonal Screen Size [custom]	45.72 mm
Diagonal Screen Size [custom]	1.8 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels [x]	128
Dot Pixels [y]	160
Graphics Color	Green, Red, Blue
Interface	Parallel, 8-Bit
Touchscreen	Resistive
Viewing Area [y]	30.03 mm
Viewing Area [z]	37.04 mm

NHD-1.8 Series

Part	Display Type	Diagonal Screen Size	Diagonal Screen Size	Controller Type	Viewing Area [z]	Viewing Area [y]	Interface	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Touchscreen	Display Mode	Backlight	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Viewing Area [x]	Dot Size [z]	Dot Size [y]	Dot Pitch [y]	Dot Pitch [x]
Newhaven Display Intl NHD-1.8-160128UBC3	OLED	1.8 in	44.96 mm	SSD1353	29.21 mm	36.22 mm	8-Bit Parallel SPI	128	160	Blue Green Red
Newhaven Display Intl NHD-1.8-128160EF-CTXI#-T	TFT - Color			ILI9163C	37.04 mm	30.03 mm	Parallel 8-Bit	160	128	Blue Green Red	Resistive	Transmissive	LED - White	45.72 mm	1.8 in
Newhaven Display Intl NHD-1.8-128160EF-SSXN-F	TFT - Color			ILI9163V		35.04 mm	SPI	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.8-160128UF-CTXI#
Newhaven Display Intl NHD-1.8-128160EF-SSXN-FT	TFT - Color			ILI9163V		35.04 mm	SPI	160	128	Blue Green Red	Resistive	Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.8-128160EF-CSXN#-F	TFT - Color			ILI9163V		35.04 mm	Parallel 8-Bit	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.8-128160TF-CTXI#	TFT - Color					35.04 mm	Parallel 8-Bit	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm	0.22 mm	0.22 mm
Newhaven Display Intl NHD-1.8-128160EF-CTXI#-F	TFT - Color			ILI9163C		35.04 mm	Parallel 8-Bit	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.91-176176B	OLED	1.91 in	48.51 mm	SSD1333		35.3 mm	8-Bit I2C Parallel SPI	176	176							35.29 mm	0.18 mm	0.05 mm	0.2 mm	0.07 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 18.96
		5	$ 17.82
		10	$ 16.68
		50	$ 16.41

Description

General part information

NHD-1.8 Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 8-Bit 1.8" (45.72mm) 128 x 160

NHD-1.8-128160EF-CTXI#-T

Deep-Dive with AI

NHD-1.8-128160EF-CTXI#-T

Deep-Dive with AI

Technical Specifications

NHD-1.8 Series

Pricing

Description

NHD-1.8 Series

Documents

LCD Safe Handling Procedure

LCD Solvent Precautions

Datasheet

NHD-1.8 Series
