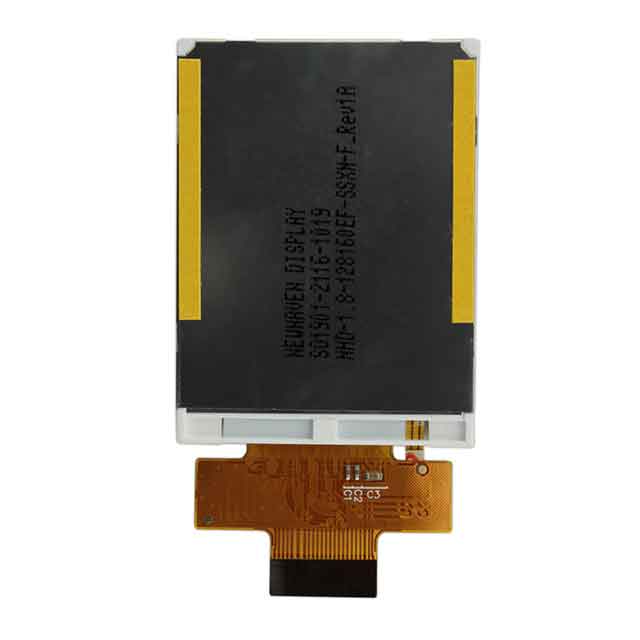

NHD-1.8-128160EF-SSXN-F

Active

Newhaven Display Intl

1.8" TFT 128X160 PIXELS SPI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NHD-1.8-128160EF-SSXN-F

Active

Newhaven Display Intl

1.8" TFT 128X160 PIXELS SPI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-1.8-128160EF-SSXN-F

Backlight	LED - White
Controller Type	ILI9163V
Diagonal Screen Size [custom]	45.72 mm
Diagonal Screen Size [custom]	1.8 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pixels [x]	128
Dot Pixels [y]	160
Graphics Color	Green, Red, Blue
Interface	SPI
Viewing Area [x]	28.03 mm
Viewing Area [y]	35.04 mm

NHD-1.8 Series

Part	Display Type	Diagonal Screen Size	Diagonal Screen Size	Controller Type	Viewing Area [z]	Viewing Area [y]	Interface	Dot Pixels [y]	Dot Pixels [x]	Graphics Color	Touchscreen	Display Mode	Backlight	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Viewing Area [x]	Dot Size [z]	Dot Size [y]	Dot Pitch [y]	Dot Pitch [x]
Newhaven Display Intl NHD-1.8-160128UBC3	OLED	1.8 in	44.96 mm	SSD1353	29.21 mm	36.22 mm	8-Bit Parallel SPI	128	160	Blue Green Red
Newhaven Display Intl NHD-1.8-128160EF-CTXI#-T	TFT - Color			ILI9163C	37.04 mm	30.03 mm	Parallel 8-Bit	160	128	Blue Green Red	Resistive	Transmissive	LED - White	45.72 mm	1.8 in
Newhaven Display Intl NHD-1.8-128160EF-SSXN-F	TFT - Color			ILI9163V		35.04 mm	SPI	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.8-160128UF-CTXI#
Newhaven Display Intl NHD-1.8-128160EF-SSXN-FT	TFT - Color			ILI9163V		35.04 mm	SPI	160	128	Blue Green Red	Resistive	Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.8-128160EF-CSXN#-F	TFT - Color			ILI9163V		35.04 mm	Parallel 8-Bit	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.8-128160TF-CTXI#	TFT - Color					35.04 mm	Parallel 8-Bit	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm	0.22 mm	0.22 mm
Newhaven Display Intl NHD-1.8-128160EF-CTXI#-F	TFT - Color			ILI9163C		35.04 mm	Parallel 8-Bit	160	128	Blue Green Red		Transmissive	LED - White	45.72 mm	1.8 in	28.03 mm
Newhaven Display Intl NHD-1.91-176176B	OLED	1.91 in	48.51 mm	SSD1333		35.3 mm	8-Bit I2C Parallel SPI	176	176							35.29 mm	0.18 mm	0.05 mm	0.2 mm	0.07 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.47
		5	$ 18.30
		10	$ 17.13
		50	$ 16.19

Description

General part information

NHD-1.8 Series

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color SPI 1.8" (45.72mm) 128 x 160
