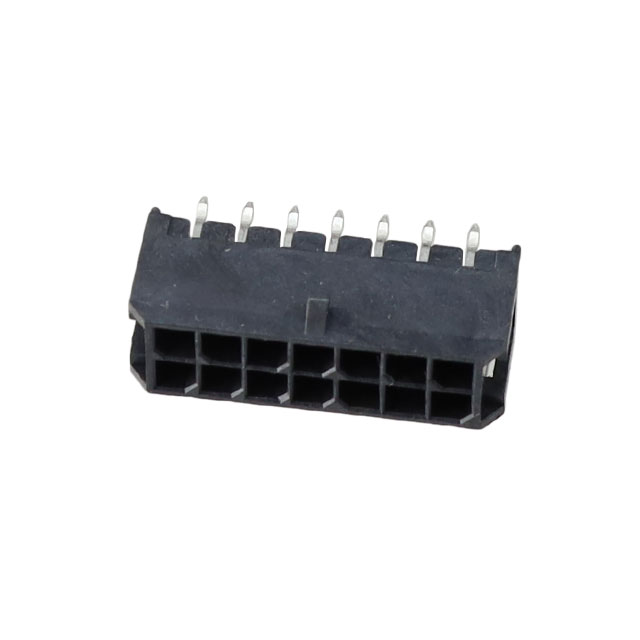

10127721-141LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 14POS 3MM

10127721-141LF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 14POS 3MM

Description Specifications Series Pricing CAD Documents

Description

General part information

10127721 Series

Connector Header Through Hole 14 position 0.118" (3.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	10127721-141LF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.433 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	600 V
Voltage Rating (Type)	DC

10127721 Series

Part	Row Spacing - Mating	Features	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Termination	Pitch - Mating	Shrouding	Number of Positions	Number of Rows	Mounting Type	Contact Finish - Post	Style	Current Rating	Voltage Rating	Voltage Rating (Type)	Material Flammability Rating	Connector Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Insulation Color	Fastening Type	Contact Shape	Insulation Material	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Amphenol ICC (FCI) 10127721-122GLF	0.118 in	Board Guide Glow Wire Compliant	0.126 in	Gold	Flash	All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	12	2	Through Hole	Gold	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy	Flash	Flash	Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C
Amphenol ICC (FCI) 10127721-022LF	0.118 in	Board Guide	0.126 in	Gold	Flash	All	0.433 in	Kinked Pin Solder		Shrouded - 4 Wall	2	2	Through Hole	Gold	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy	Flash	Flash	Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C
Amphenol ICC (FCI) 10127721-082GLF	0.118 in	Board Guide Glow Wire Compliant	0.126 in	Gold	Flash	All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	8	2	Through Hole	Gold	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy	Flash	Flash	Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C
Amphenol ICC (FCI) 10127721-061GLF	0.118 in	Board Guide Glow Wire Compliant	0.126 in	Tin		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	6	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	100 µin	100 Ąin
Amphenol ICC (FCI) 10127721-043GLF	0.118 in	Board Guide Glow Wire Compliant	0.126 in	Gold		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	4	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	15 µin
Amphenol ICC (FCI) 10127721-161LF	0.118 in	Board Guide	0.126 in	Tin		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	16	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	100 µin	100 Ąin
Amphenol ICC (FCI) 10127721-103GLF	0.118 in	Board Guide Glow Wire Compliant	0.126 in	Gold		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	10	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	15 µin
Amphenol ICC (FCI) 10127721-124LF	0.118 in	Board Guide	0.126 in	Gold		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	12	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	30 µin
Amphenol ICC (FCI) 10127721-163LF	0.118 in	Board Guide	0.126 in	Gold		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	16	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	15 µin
Amphenol ICC (FCI) 10127721-141LF	0.118 in	Board Guide	0.126 in	Tin		All	0.433 in	Kinked Pin Solder	0.118 in	Shrouded - 4 Wall	14	2	Through Hole	Tin	Board Cable/Wire	Varies by Wire Gauge	600 V	DC	UL94 V-0	Header	Copper Alloy			Black	Locking Ramp	Square	Thermoplastic	Male Pin	-40 °C	105 °C	100 µin	100 Ąin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

10127721-141LF | Datasheet

minitek pwr productpresentation Other Related Document

Datasheet

gs-12-1177 Other Related Documents

10159387-004
