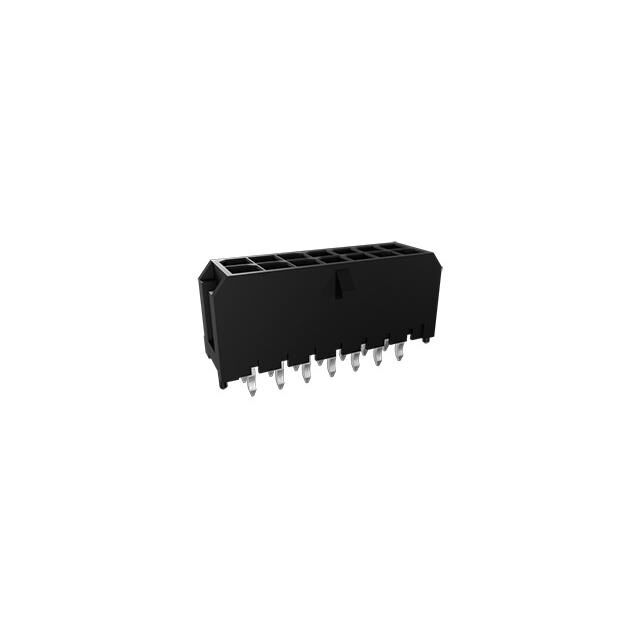

10127721-124LF

Active

Amphenol ICC (FCI)

CONN PWR3.0 VT HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet gs-20-0399 Other Related Document +2

10127721-124LF

Active

Amphenol ICC (FCI)

CONN PWR3.0 VT HEADER

Deep-Dive with AI

DocumentsDatasheet gs-20-0399 Other Related Document +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10127721-124LF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.433 in
Insulation Height	11 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	600 VAC

10127721 Series

Part	Contact Material	Contact Finish - Post	Insulation Material	Number of Rows	Features	Number of Positions	Voltage Rating	Shrouding	Contact Finish Thickness - Mating	Fastening Type	Contact Length - Post	Contact Length - Post [x]	Connector Type	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish - Mating	Termination	Mounting Type	Contact Shape	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Material Flammability Rating	Number of Positions Loaded	Style	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions
Amphenol ICC (FCI) 10127721-122GLF	Copper Alloy	Gold	Thermoplastic	2	Board Guide Glow Wire Compliant	12	600 VAC	Shrouded - 4 Wall	Flash	Locking Ramp	3.2 mm	0.126 in	Header	Flash	Varies by Wire Gauge	Gold	Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm
Amphenol ICC (FCI) 10127721-022LF	Copper Alloy	Gold	Thermoplastic	2	Board Guide	2	600 VAC	Shrouded - 4 Wall	Flash	Locking Ramp	3.2 mm	0.126 in	Header	Flash	Varies by Wire Gauge	Gold	Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire
Amphenol ICC (FCI) 10127721-061GLF	Copper Alloy	Tin	Thermoplastic	2	Board Guide Glow Wire Compliant	6	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge		Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	2.54 çm	100 çin	2.54 µm	100 µin
Amphenol ICC (FCI) 10127721-043GLF	Copper Alloy	Tin	Thermoplastic	2	Board Guide Glow Wire Compliant	4	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge	Gold	Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	0.38 µm	15 µin
Amphenol ICC (FCI) 10127721-161LF	Copper Alloy	Tin	Thermoplastic	2	Board Guide		600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge		Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	2.54 çm	100 çin	2.54 µm	100 µin	16
Amphenol ICC (FCI) 10127721-103GLF	Copper Alloy	Tin	Thermoplastic	2	Board Guide Glow Wire Compliant	10	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge	Gold	Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	0.38 µm	15 µin
Amphenol ICC (FCI) 10127721-124LF	Copper Alloy	Tin	Thermoplastic	2	Board Guide	12	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge	Gold	Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10127721-141LF	Copper Alloy	Tin	Thermoplastic	2	Board Guide	14	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge		Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	2.54 çm	100 çin	2.54 µm	100 µin
Amphenol ICC (FCI) 10127721-064LF	Copper Alloy	Tin	Thermoplastic	2	Board Guide	6	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge	Gold	Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	0.76 Ám	30 Áin
Amphenol ICC (FCI) 10127721-241LF	Copper Alloy	Tin	Thermoplastic	2	Board Guide	24	600 VAC	Shrouded - 4 Wall		Locking Ramp	3.2 mm	0.126 in	Header		Varies by Wire Gauge		Kinked Pin Solder	Through Hole	Square	Black	-40 °C	105 ░C	0.433 in	11 mm	3 mm	0.118 in	Male Pin	UL94 V-0	All	Board to Cable/Wire	0.118 in	3 mm	2.54 çm	100 çin	2.54 µm	100 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10127721 Series

Connector Header Through Hole 12 position 0.118" (3.00mm)
