10127721-161LF
ActiveAmphenol ICC (FCI)

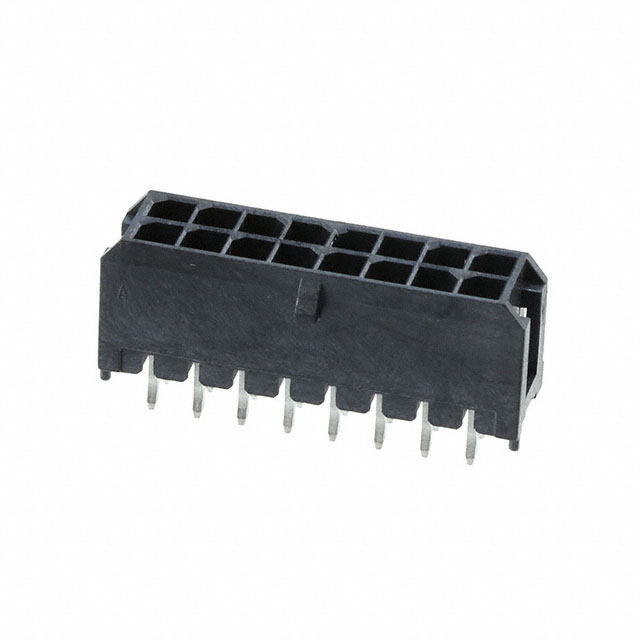

CONN HEADER VERT 16POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
10127721-161LF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 16POS 3MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10127721-161LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post | 3.2 mm |
| Contact Length - Post [x] | 0.126 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.433 in |
| Insulation Height | 11 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.34 | |
| 10 | $ 1.02 | |||
| 80 | $ 0.80 | |||
| 440 | $ 0.67 | |||
| 945 | $ 0.61 | |||
| 4900 | $ 0.52 | |||
| 10000 | $ 0.50 | |||
Description
General part information
10127721 Series
Connector Header Through Hole 16 position 0.118" (3.00mm)
