Technical Specifications
Parameters and characteristics for this part
| Specification | ATUM-12/4-0-SP |
|---|---|
| Color | Black |
| Features | Flame Retardant, Fluid Resistant, Adhesive Lined |
| Inner Diameter - Recovered [diameter] | 3.99 mm |
| Inner Diameter - Recovered [diameter] | 0.157 in |
| Inner Diameter - Supplied [diameter] | 0.472 in |
| Inner Diameter - Supplied [diameter] | 11.99 mm |
| Length | Enter Number of Meters in Order Quantity |
| Material | Polyolefin (PO), Irradiated |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 1.78 mm |
| Recovered Wall Thickness | 0.07 " |
| Shelf Life | 60 Months |
| Shrink Temperature | 80 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Spool Size | 656.2 ' |
| Spool Size | 200 m |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | 0 °C |
| Type | Semi-Flexible, Tubing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 10.36 | |
| 5 | $ 9.91 | |||
| 10 | $ 7.66 | |||
| 25 | $ 6.98 | |||
| 50 | $ 6.53 | |||
| 100 | $ 6.08 | |||
Description
General part information

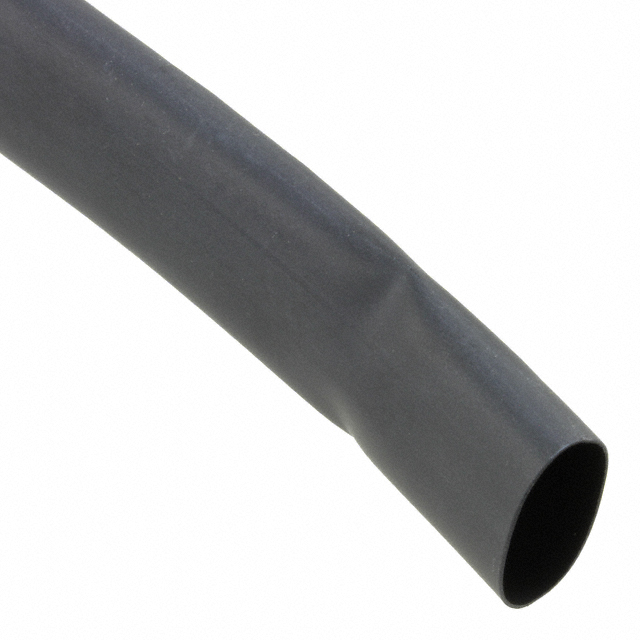

RAYCHEM ATUM Series
Heat Shrink Tubing, Semi-Flexible 0.472" (11.99mm) 3 to 1 Black Enter Number of Meters in Order Quantity
